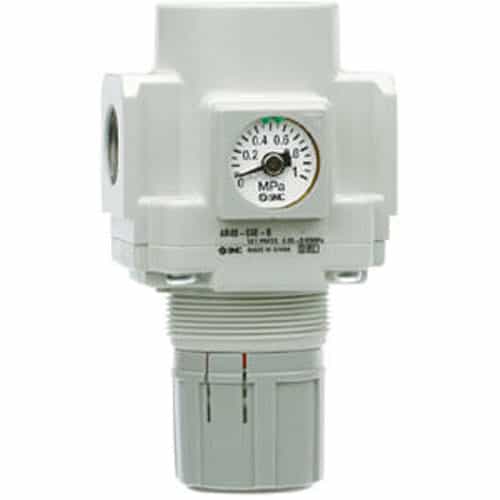

SMC Pneumatics AR20-N02GH-Z-B Series AR-B Regulator - 125 PSI
Brand:
Mfr. Model #:
AR20-N02GH-Z-B
KR Part #:
SMC107-G
Weight:
0.35 lbs
Temporarily Unavailable
Locking adjustment knob. Backflow prevention function. Compatible with SMC air preparation equipment. Note: Actual item may differ from photo - see specs.
Technical Specifications
Max PSI: 125
Max Temperature: 140 degrees F
Inlet Port: 1/4 inch
Outlet Port: 1/4 inch
Product Description
Pressure Regulator With Backflow Function
SMC Pneumatics Series AR-B Regulators are built with a backflow prevention function. Features a locking adjustment knob to prevent accidental setting changes. Connects with SMC air preparation equipment of the same size. Port size for both the inlet and outlet measure 1/4 NPT.
Specifications:
- Body Size: 20
- Pipe Thread Type: NPT
- Port Size: 1/4" NPT
- Ambient and Fluid Temperature: -5 to 60° Celsius (23 to 140° F)
- Square embedded type pressure gauge with limit indicator
- Nameplate and pressure gauge in imperial units (PSI)
- Proof Pressure: 1.5 MPA (218 PSI)
- Maximum Operating Pressure: 1.0 MPA (145 PSI)
Features:
- Diaphragm is made of ozone resistant rubber material (HNBR).
- Embedded pressure gauge.
- Backflow function
