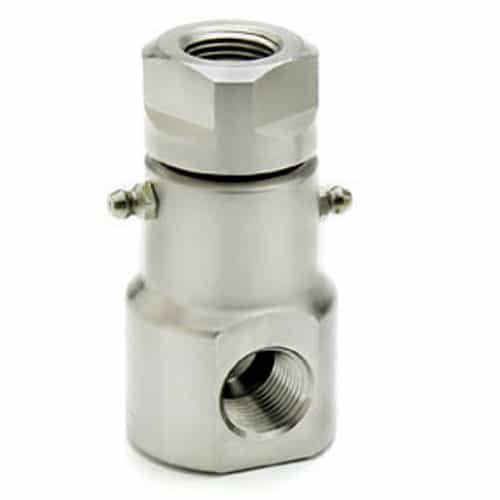

90 Degree Electroless Nickel Swivel

This swivel is designed with a right-angle change of path to provide free rotation on a 90° swivel. Engineered to reduce friction and kink risk. Base material and plating utilize carbon steel nickel plating for corrosion resistance with mildly corrosive chemicals. Utilizes a Viton seal for handling petroleum.

Specifications:

• Part Number: 9SS8HPFP38XFP38-NI-90V

• Material: Electroless Nickel

• Seal: Viton

• Overall Length: 2.940 "

• Dim. B: 2.340 "

• Dim. DØ: 1.520"

• Wrench: 1.125"

• Port T1: 3/8-18 NPTF

• Stem T2: 3/8-18 NPTF

• SWG. Radius: 0.660"

• Max PSIG: 10,000 PSIG

• Through Hole: 0.437"

Features:

• Base Material and Plating:

  • Carbon Steel Nickel (NI) Plating is recommended for mildly corrosive environments, i.e. water, mild chemicals, solvents, etc.
• Seat Material:
  • V) Viton¨ (Fluorocarbon) - For most petroleum-based applications. (-15 deg. F to 250 deg. F)

• Super Swivels are not recommended for breathing air/oxygen or steam.

• All swivels have 4 to 1 proof pressure, except 10,000 PSI = 3 to 1 proof pressure

• Any series stem will fit with the same series body

• 90° Swivels rotating joints provide free rotation on one axis with a right-angle change of path

• They reduce the complexity of hose lines providing for minimal friction and allowing free movement
• of hoses and piping

• 90° Super Swivels allow for sharp corners with reduced risk of kinks and flow restriction and free
• rotation

• Super Swivels ball bearing race design withstands heavy side loads preventing premature seal wear
• and leaks

• Super Swivels connect directly to hose lines without adapters reducing overall costs of hydraulics

• No Kinks - No Hose Twisting
