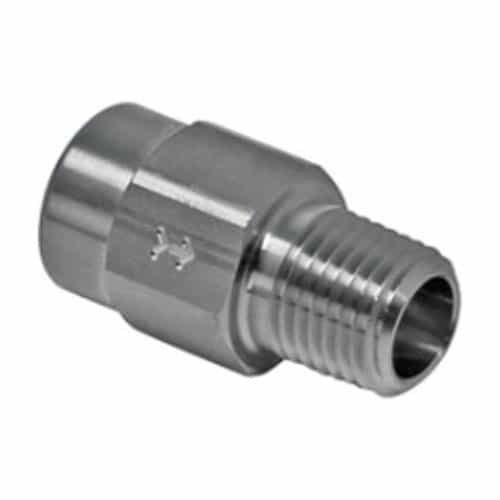

SMC 6433390 Stainless Steel 1/4 F x 1/4 M Check Valve - 500 PSI

Brand:
Mfr. Model #:
6433390
KR Part #:
CV0096
Weight:
0.25 lbs
Out of Stock - Pre-Order Now
MSRP
$34.25
Now Only!
$24.91
316 stainless steel check valve with stainless steel spring and Viton o-ring. Water flows from 1/4" female end to 1/4" male end. 500 PSI maximum pressure, 20 PSI cracking pressure.



Technical Specifications

Inlet Port: 1/4 inch
Outlet Port: 1/4 inch
Max PSI: 500
Max Temperature: 180 degrees F

Product Description

1/4" Steel Check Valve

The SMC 6433390 Check Valve is made with stainless steel and flows from the female end to the male end. Usable in applications up to 500 PSI. Perfect design to keep your fluid flowing in the proper direction to protect equipment and maintain consistent flow.

  • 316 stainless body and piston
  • Viton o-ring
  • 302 stainless spring
  • 500 PSI maximum pressure
  • 20 PSI cracking pressure
  • Temperature: 180° Fahrenheit
  • 1/4" FNPT inlet
  • 1/4" MNPT discharge
  • Flow travels from female to male end as indicated by arrow
  • Weight: .25 lbs.
