M5 X-Jet 25 Nozzle Only - 8.5+ GPM
Brand:
Mfr. Model #:
XM5-25
KR Part #:
XJETM5-25K-N
Weight:
0.40 lbs
Availability:
6
New nozzle for M5 X-Jet 25 downstream injector system. This nozzle is used with operating pressures of 2500-4000 PSI and flow rates over 8.5 GPM. NOTE: This is an M5 replacement nozzle only, NOT the entire kit with hose, strainer, and proportioning tips.
Technical Specifications
Max GPM: 8.5+
Max PSI: 4000
Max Temperature: 190 degrees F
Inlet Port: 1/4 inch
Product Description

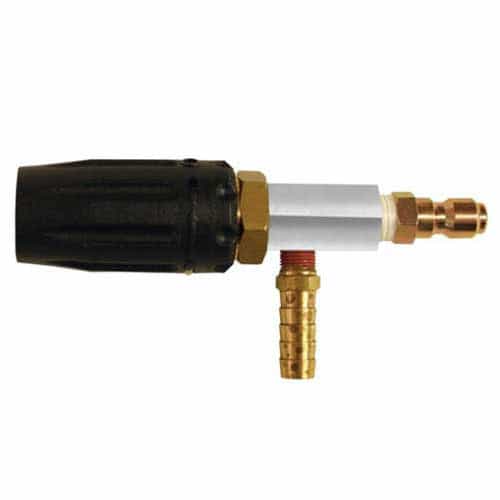

M5 X-Jet (Adjustable) #25
The M5 X-Jet nozzle has an adjustable 5-60 degree spray pattern. This is the replacement nozzle assembly only. It does not include the hose assembly and proportioners.
With the X-Jet, you can apply soap and rinse with the same nozzle! It projects chemicals up to 40 ft. depending on your machine. No chemicals run through the pump, hose, reels, gun, lance, or quick connects.
Dimensions: 5.38" x 1.25" x 2.38"
- Long range external chemical injection
- Inlet port: 1/4" quick connect plug
- Chemical port: 1/8 MPT x 3/8" hose barb
- Maximum temperature: 190 degrees F
- 2500-4000 PSI operating pressure
- 8.5+ GPM flow
- X-Jet model # XM5-25
- Full kit available; part #XJETM5-25K
