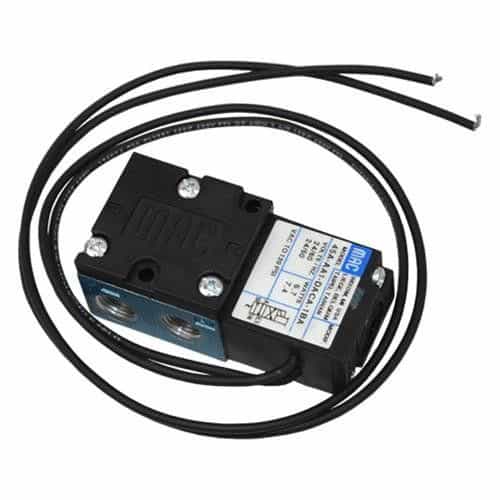

MAC Valves 45A-AA2-DFBA-1CA Single Operator 45 Series Inline Direct Solenoid - 1/8 NPTF, 24VDC, 1/2 NPT Electrical Connection
Brand:
Mfr. Model #:
45A-AA2-DFBA-1CA
KR Part #:
MAC2455
Weight:
0.30 lbs
Out of stock - Pre-Order Now!
Single operator inline direct solenoid for car wash, vacuum, and other applications requiring fast, consistent response time. 1/8" FNPT ports, 24 volt DC, 1/2" NPS electrical connection. Part of the MAC 45 Series. Exact model not shown in image. Please read specifications carefully before buying.
Technical Specifications
Voltage DC: 24
Inlet Port: 1/8 inch
Outlet Port: 1/8 inch
Product Description
45 Series Solenoid Poppet Valve - 24 Volt DC
The MAC 45 Series includes excellent options for car wash, vacuum, diverter, or selector applications where fast response time, high shifting forces and long life are crucial. The MAC Valves 45A-AA2-DFBA-1CA is a single operator 4-way direct solenoid poppet valve with a short stroke, conical seats, and a balanced poppet. The balanced poppet design facilities using the same valve for many functions without the necessity of changing any parts.
Specifications:
- 1/8" NPTF port size
- 4-way - can be configured to your needs
- 24VDC
- 18" wire length with 1/2" NPS conduit electrical connection
- Single operator
- Non-locking manual operator
- Weight: .30 lbs.
Series Features:
- Single and double solenoid or remote air.
- Patented MACSOLENOID¨ for fastest possible response times.
- Bonded balanced poppets for high flow, precise repeatability, and consistent operation.
- Balanced poppet design permits versatility in piping. Valves can be piped as 4-way, 3-way or 2-way,
normally closed or normally open or can be used for vacuum, diverter or selector applications. - Use on lube or non-lube service.
- Extremely high cycle rates.
- Extremely long service life due to unique poppet cushions.
- Manual overrides as standard.
