Tapered Edge Nozzle

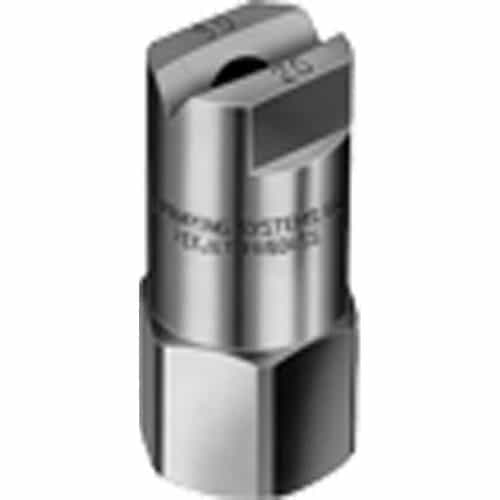

Spraying Systems H1/4DU-SS6520 is a VeeJet spray nozzle with an orifice that delivers a tapered edge spray pattern with a spray angle of 65. This nozzle is constructed with 303 stainless steel that tolerates a maximum pressure of 5000 PSI. Equipped with a 1/4-inch female NPT inlet connection. Utilized in cooling and quenching, product washing, water cooling, air and gas washers, scrubbers, liquor washers, dust control, fire protection applications.

• Specifications:

• Ordering Number: H1/4DU-SS6520

• Nozzle Prefix Code: H

• Nozzle Type Prefix: DU

• Nozzle Inlet Connection: Female NPT

• Spray Angle: 65

• Spray Pattern Type: Tapered Edge

• Capacity @ 40 psi: 2

• Nozzle Type: H-DU

• Inlet Connection: 1/4

• Capacity Size: 20

• Material: 303 Stainless Steel

• Material Code: SS

• Length: 1.25

• Hex: 0.625

• Net Wt. (oz): 1.25

• Option: Integral Strainer

• Minimum PSI: 5

• Maximum PSI: 500


Applications:

• Cooling and quenching

• Product washing

• Water cooling

• Air and gas washers

• Scrubbers

• Liquor washers

• Dust control

• Fire protection
