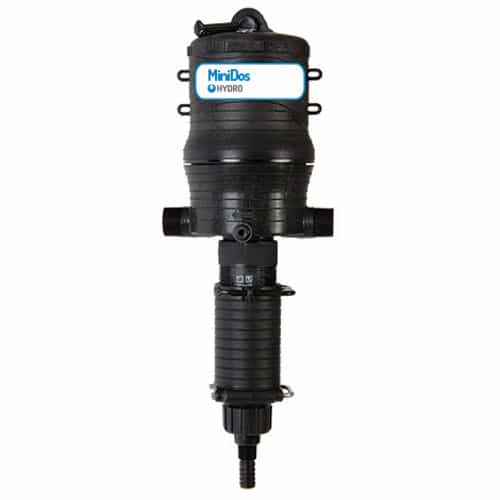

Hydro Systems 112602 MiniDos 1:200 - 1:40 Adjustable Fluid Driven Proportional Injector, 0.04 - 12 GPM, 6 - 140 PSI, Viton Seals
Brand:
Mfr. Model #:
HYD112602
KR Part #:
IN112602
Weight:
4.10 lbs
Fluid-driven proportional injector produces consistent injection ratios adjustable from 0.5% to 2.5% (1:200 - 1:40). Made with chemical-resistant parts. Change ratios during operation.
Technical Specifications
Min PSI: 6
Max PSI: 140
Min GPM: 0.04
Max GPM: 12
Min Temperature: 34 degrees F
Max Temperature: 100 degrees F
Product Description
Fluid Driven Proportional Injector
Fluid flow powers the MiniDos self-priming injector. Provides consistent injection ratios regardless of variable flow rates or pressure fluctuations. Made with chemical-resistant parts that lengthen the proportioners life. Injection ratio is adjustable during operation.
Features:
- Proprietary composite body which exceeds PVDF for chemical compatibility and for mixing aggressive chemicals.
- Built-in on/off switch which allows user to stop the injection, but not the system.
- Separate internal mixing chamber helps prevent chemical contact with motor piston, for longer life and uniform mixing.
- Compact unit
- Requires no electricity for powering - pressure is used as the power source.
Specifications:
- Injection Ratio: 1:200 to 1:40
- Flow Range: 0.04 to 12 GPM
- Operating Pressure Range: 6 to 140 PSI
- Fluid Temperature Range: 34 to 100 F
- Seal Material: Viton
- Vertical suction to 13' (3.6 M) and horizontal suction rated to 49' (15.0M)
Applications:
- Animal Health
- Horticulture
- Food Processing
- Vehicle Wash
- Pest Control
- Water Treatment
