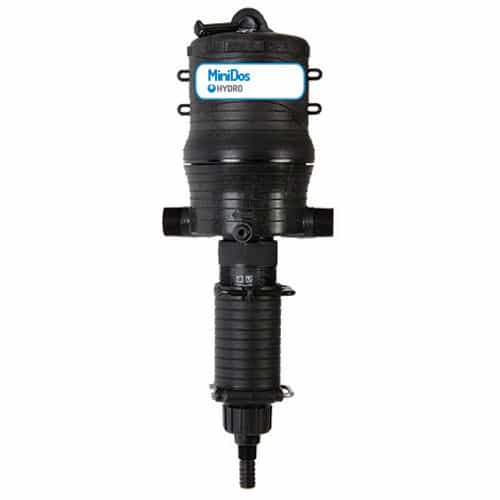

Hydro Systems 112606 MiniDos 1:50 - 1:10 Adjustable Fluid Driven Proportional Injector, 0.07 - 10 GPM, 6 - 65 PSI
Brand:
Mfr. Model #:
HYD112606
KR Part #:
IN112606
Weight:
5.15 lbs
Availability:
3
Low Inventory Get It Today
Fluid-driven proportional injector produces consistent injection ratios adjustable from 2% to 10% (1:50 - 1:10). Made with chemical-resistant parts. Change ratios during operation.
Technical Specifications
Min PSI: 6
Max PSI: 65
Min GPM: 0.07
Max GPM: 10
Min Temperature: 34 degrees F
Max Temperature: 100 degrees F
Product Description
Fluid Driven Proportional Injector
Fluid flow powers the MiniDos self-priming injector. Provides consistent injection ratios regardless of variable flow rates or pressure fluctuations. Made with chemical-resistant parts such as Viton seals for acids, oils, and pesticides. Injection ratio is adjustable during operation.
Features:
- Proprietary composite body which exceeds PVDF for chemical compatibility and for mixing aggressive chemicals.
- Built-in on/off switch which allows user to stop the injection, but not the system.
- Separate internal mixing chamber helps prevent chemical contact with motor piston, for longer life and uniform mixing.
- Compact unit
- Requires no electricity for powering - pressure is used as the power source.
Specifications:
- Injection Ratio: 1:50 to 1:10
- Flow Range: 0.07 to 10 GPM
- Operating Pressure Range: 6 to 65 PSI
- Fluid Temperature Range: 34 F to 100 F
- Seal Material: Viton
- Vertical suction to 13' (3.6 M) and horizontal suction rated to 49' (15.0M)
Applications:
- Animal Health
- Horticulture
- Food Processing
- Vehicle Wash
- Pest Control
- Water Treatment
