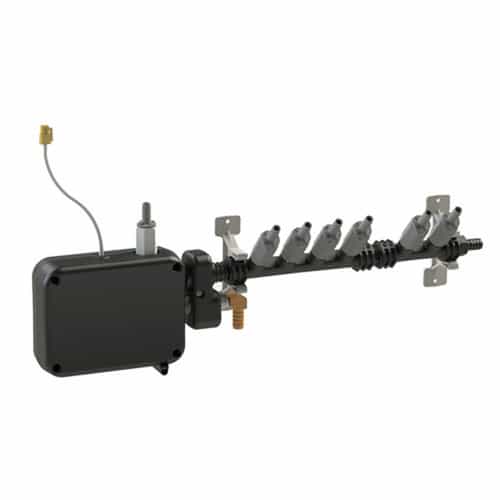

4-Product Standard Flush Manifold

The Hydro Systems 00-03608-04XT is used in commercial laundry applications when transferring liquid laundry products from the dispenser to the washing machine using water flow through a discharge tube. The design of this flush manifold incorporates fewer leak paths, all threaded seals and a more flexible, robust water inlet connection.

The 00-03608-04XT is the four-product version of the Hydro Systems FM-800 Flush Manifold.

Dimensions: 4.5" x 2" x 7.5"

Specifications:

• 4-product version of the FM-800 Flush Manifold
• Easily connects to most Hydro dispensing systems
• Weight: 5.07 lbs.

Features and Information:

• Industry standard ball and spring check valves prevent unwanted chemical mixing
• An integrated flow switch avoids incomplete dispensing with water flows under 0.65 GPM
• Straight and 90° hose barbs with a push-to-connect interface ensure an easy and hassle-free install
• A swivel feature that allows the unit to be adjusted in 45 degree increments from the vertical for added flexibility
• Reduces stress on the peristaltic pump system by using water to transport products over long distances
• Optimizes safety and cleaning results Ñ avoids potentially hazardous chemical mixing by flushing with an adequate water supply between dosages
