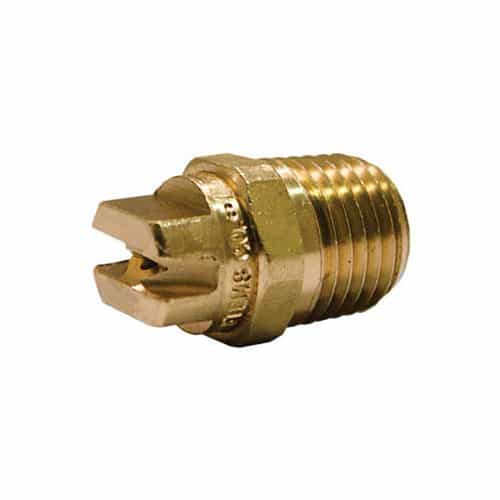

Spraying Systems H1/4VV-11015 Male NPT 1/4 in. Brass VeeJet Spray Tip, 11015
Brand:
Mfr. Model #:
H1/4VV-11015
KR Part #:
SN11015H4VV
Weight:
0.05 lbs
Usually Ships in 2 Weeks
Tapered edge spray tip made with high-quality brass. V-shaped orifice creates a flat fan spray pattern for optimal coverage. 500 PSI max pressure, 110 degree spray angle, 15 capacity.
Technical Specifications
Inlet Port: 1/4 inch
Max PSI: 500
Capacity: 1.5
Min PSI: 5
Product Description
11015 1/4" Brass VeeJet Nozzle
Spraying Systems VeeJet spray tips facilitate efficient wash jobs at your facility. Even, uniform spray distribution contributes to an optimal spraying job over a range of different flow rates and pressure outputs. Unique, specially tapered spray pattern is perfect for washing in manifold and headers. A superb, high impact liquid stream means more impact per unit area and faster wash times as well as reducing water consumption.
Size:
- Inlet: 1/4" Male NPT
- Length: 0.90625"
- Hex: 0.5625"
Details:
- Spray Angle: 110°
- Spray Pattern: Tapered Edge
- Pressure Range: 5 - 500 PSI
- Flow rate capacity (at 40 PSI): 1.50
- Nozzle: H-VV
- Capacity Size: 15
- Material: Brass
Common Usage / Applications:
- Cooling / quenching
- Spray washing
- Water cooling
- Air + gas washers
- Scrubbers
- Liquor washers
- Dusting control
- Fire safety
