Bolt-On Pump

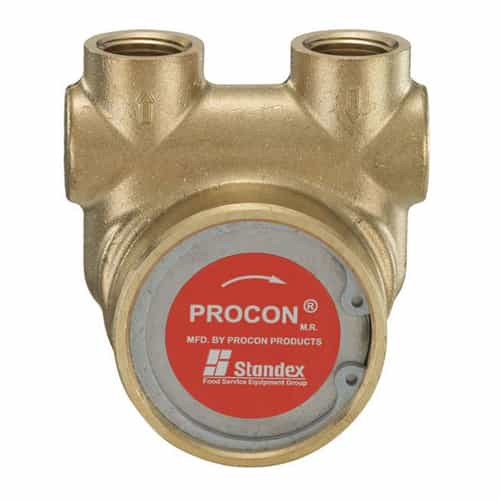

Procon's 102E140F12XX is a Series 2 positive displacement rotary vane pump is capable of self-priming in water with a 6 ft. maximum lift. This pump is equipped with 3/8 NPT inlet and outlet ports. Engineered to produce lower vibration and pulsation levels. Typically used in carbonation, espresso/coffee, welding, cold carb circulation, reverse osmosis, beer chillers, pesticide systems, and solar applications.

Specifications:

• Product Classification: Rotary Vane Pump

• Agency Approvals: Non-Food Grade (1.5% Max. Lead)- No Agency Approval

• Series: Series 2 Brass

• Mounting and Drive Configuration: Bolt-On with Single Flat Drive

• Flowrate: 140 GPH

• Elastomer: FDA Grade Nitrile

• Rotation / Slinger / Passivation / Strainer: Clockwise

• Clearances: SPCL Clearance (1x) Liner and BRGS.

• Valve Type and Configuration: No Relief Valve

• Pressure Range: No Setting

• Body Material Type: Brass

• Nominal Speed: 1725 RPM

• Typical Horsepower Required: .25 To .50 HP

• Maximum Discharge Pressure: 250 PSI

• Rotation (Viewed from Nameplate End): Clockwise

• Dry Weight: Approximately 2.5 Lbs.

• Dimensions: 3.56" X 3.49" X 3.86"

• Self-Priming (Water): 6 Ft. Maximum Lift

• Port Size: 3/8 NPT Inlet and Outlet


Applications:

• Carbonation

• Espresso/Coffee

• Welding

• Cold Carb Circulation

• Reverse Osmosis

• Beer Chillers

• Pesticide Systems

• Solar Applications
