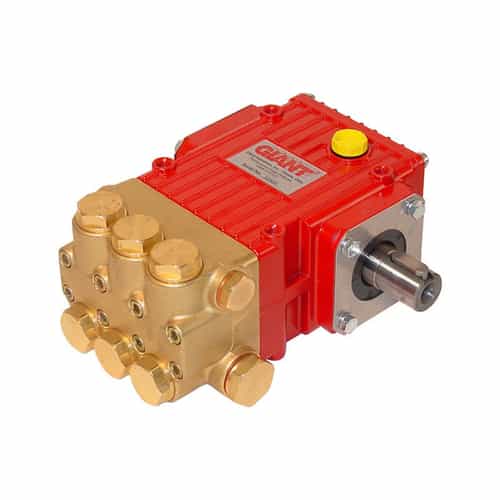

Giant Pump P205RE2FRT Triplex Plunger Pump, 0.5 GPM, 2000 PSI, Right Shaft, Regulator, Thermal Relief Valve
Brand:
Mfr. Model #:
P205RE2FRT
KR Part #:
PUP205RE2FRT
Weight:
11.70 lbs
Temporarily Unavailable
Manuals
This triplex ceramic plunger pump features solid ceramic plungers and stainless steel valves for durability. TC Face electric motor flange with 7 1/4" diameter bolts for direct drive, 1 1/8" aluminum coupler. Includes regulator and thermal relief valve. Right side drive.
Technical Specifications
Max GPM: 0.5
Max PSI: 2000
Max Temperature: 160 degrees F
RPM: 1750
Inlet Port: 1/2 inch
Outlet Port: 3/8 inch
Bore: 12 millimeter
Stroke: 3.4 millimeter
Shaft Diameter: 24 millimeter
Crankcase Capacity: 7.5 oz
Product Description
Low-Flow Right Mounted Plunger Pump
The Giant P205RE2FRT high-pressure pump has a right-side mounted shaft and 12 mm ceramic plungers. This high-quality positive displacement plunger pump has a maximum flow rate of 0.5 GPM and a maximum pressure of 2000 PSI. Features TC Face electric motor flange with 7 1/4" diameter bolts for direct drive, and a 1 1/8" aluminum coupler. Includes regulator and thermal relief valve for easy ingetration! Giant positive displacement pumps are reliable options for high-pressure water systems at car washes, vehicle dealers, and auto detailing shops.
Specifications:
- Max GPM: 0.5 GPM
- Discharge pressure: 2000
- Maximum temperature: 160° F
- Plunger diameter: 12 mm
- Stroke: 3.4 mm
- Crankshaft diameter: 24 mm
- Inlet ports: (2) 1/2" BSP
- Discharge ports: (2) 3/8" BSP
- Crankcase oil capacity: 7.5 fl. oz.
Key Component Material:
- Manifold: Special brass
- Plungers: Solid ceramic oxide
- Valves: High grade stainless steel
- Seals: Nitrile with fabric reinforcing
- Gear End: Aluminum
