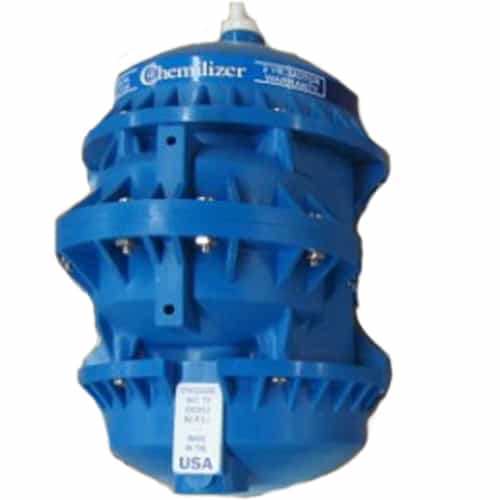

Water-Driven Chemical Injector with Viton Seal Pump

This Hydro Systems CH6000-209 Chemilizer is a fluid-powered variable rate chemical injector that provides consistent, accurate dosing. From years of proven diaphragm technology, Chemilizers have become an industry leader for precise chemical injection. The speed of the water motor and pump is proportional to the water flow, ensuring Chemilizer will inject consistent amounts of chemical regardless of fluctuation in water pressure and flow.

Specifications:

• Maximum Operating Pressure: 80 PSI

• Minimum Operating Pressure: 4 PSI

• Maximum Flow Rate: 12 GPM

• Injection Rate: 1 GPH

• Viton seals

• 3/4" male NPT

• Maximum Temperature: 110° Fahrenheit

• 3/4" male national hose thread

Included with Injector:

• Viton pump with Jaco nut

• Suction hose

• PE tube

Features:

• No water filtration required; the diaphragm water motor is unaffected by sand or minerals in the water
• Unique by-pass chemical injection design; the chemical is injected after the motor, avoiding chemical contact with critical motor parts

• Excellent low-flow capabilities

• Corrosion resistant construction

• Easy and low-cost maintenance — typical maintenance is tool-free
• Now featuring brass inserts molded into the body of Chemilizer, which allow for shorter repair times — the screws no longer require nuts
