Name: General Pump ET1509E17H ET Series Hollow Shaft 2.1 GPM, 2610 PSI
Brand: Kleen-Rite Corp
SKU: GPET1509E17H

ET1509E17H ET Series Hollow Shaft Pump With Hot Kit

Brand:

Kleen-Rite Corp

Mfr. Model #:

ET1509E17H

KR Part #:

GPET1509E17H

Weight:

11.00 lbs

Out of stock - Pre-Order Now!

MSRP

~~$1,212.00~~

Now Only!

$413.85

Frequent Questions

General Pump's Evolution ET series are designed specifically for pressure cleaning applications. They feature a hollow shaft, flanged for direct coupling to electric motors (NEMA56C). This model is built with incorporated "hot kit" so max temp is 185 degrees.

More Info...

Product Description

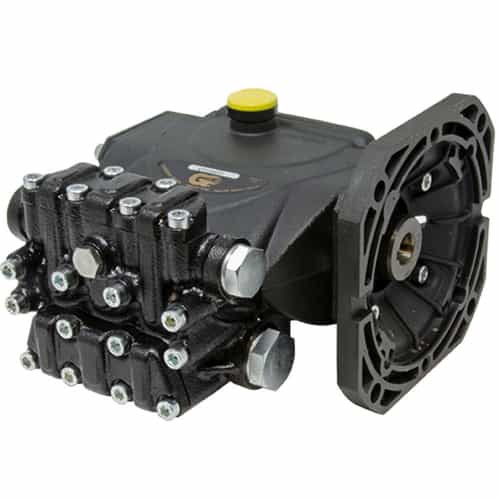

ET Series Hollow Shaft Pump with Hot Kit

ET Series Model ET1509E17H features a generation seal package, dust protection chamber, solid ceramic plungers and oversized guide, optimized inlet and outlet valves, and oil seal. Different seals, a "hot kit" allow this pump to handle higher temps than the base model, up to 185 degrees F. Industrial-grade, nickle-plated cast manifold has HR anti-corrosion surfase treatment for maximum durability and service life. Improved pump stability thanks to the addition of flanged hollow shaft for direct couple to electric motors.

Pump Dimensions: 7.3" x 7.4" x 5.5"

Specifications:

Hollow Shaft: 5/8 in.
Max Temp: 185 F
Max Pressure: 2610 PSI
Max Flow: 2.1 GPM
Max Pump Speed: 1700 RPM
Power: 3.7 EBHP
Inlet Port Thread: 1/2"-14 BSP-F
Outlet Port Thread: 3/8"-19 BSP-F
Bore: .591 in. / 15mm
Stroke: .370 in. / 9.4mm
Weight: 11 lbs.

Applications:
