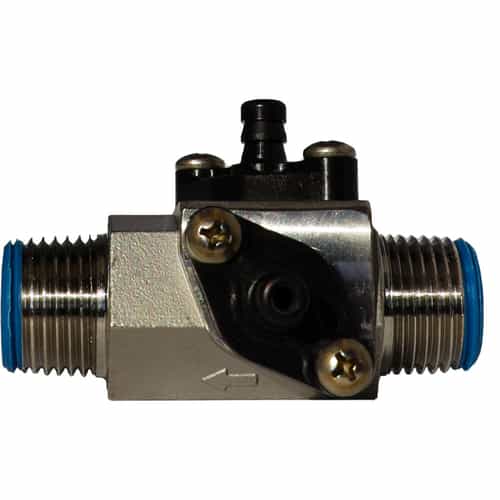

Dual Barb, 14.2 GPM, 0.206" Orifice

Clean with greater pressure while consuming less chemicals! The Dema rocket injector has two black color-coded metering barbs to easily identify the nozzle orifice size inside injectors. Rocket chemical injectors are also effortless to repair, using removable nozzles and metering barbs to make maintenance and repair simple while extending the life of the injector. The long lasting, durable components are designed to be field serviceable and reduce maintenance costs.

Rocket chemical injectors cover an extreme range of dilution ratios. The teflon ball offers chemical compatibility and the check valve keeps the chemical at the ready. The flexibility of the Rocket helps to operate systems at lower pressures, saving energy, and reducing operational costs.

Specifications:

• Viton diaphragm
• Two 1/4" hose barbs
• 1/2" male NPT outlet and inlet ports
• Injectors can thread directly into manifold
• Flow orifice: 0.206"
• Flow rate at 200 PSI: 14.2 GPM
• Black color-coded metering barb to identify nozzle orifice size
• 316 strong stainless steel cast external body
• Polypropylene molded internal body protects stainless steel
• 316 stainless steel removable nozzle
• Aflas seals
• Hastalloy spring
• Teflon ball
