SMC Pneumatics ITV2050-31N3N4 Electro-Pneumatic 2000 Series Air Regulator - 3/8 Inch NPT, 24 VDC, 0.9 Mpa
Brand:
Mfr. Model #:
ITV2050-31N3N4
KR Part #:
SMC250
Weight:
1.10 lbs
Out of stock - Pre-Order Now!
An pneumatic air regulator that uses an electrical signal to control the air pressure. An LED screen provides a quick and accurate reading of the pressure level. Compatible with 24 VDC power supplies.
Technical Specifications
Voltage DC: 24
Inlet Port: 3/8 inch
Outlet Port: 3/8 inch
Min Temperature: 32 degrees F
Max Temperature: 122 degrees F
Min PSI: 0.72
Max PSI: 130
Product Description
LED Air Pressure Regulator

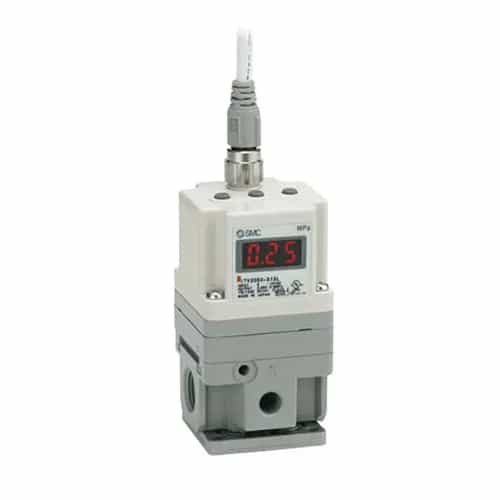

The SMC Pneumatics ITV2050-31N3N4 is a 2000 Series air pressure regulator that uses an electrical signal to control the pressure level. It features an LED display with bright display that enable operators to quickly view the current air pressure. This regulator is rated for an operating pressure ranging from 0.005 Mpa to 0.9 Mpa. Connection ports are designed with 3/8 inch NPT threading. It accommodates 24 VDC electrical connections.Specifications:
- Part Number: ITV2050-31N3N4
- Ambient Temperature: 0 to 50°C
- Input Signal Type: 0 to 10 VDC
- Monitor Output: 1 to 5 VDC
- Operating Pressure: 0.005 to 0.9 Mpa
- Port Size: 3/8 NPT
- Pressure Range/Operating Pressure: 0.005 to 0.9 MPa (0.72 PSI to 130 PSI)
- Power Supply Voltage: 24 VDC
- Thread Type: NPT
- Stepless control of air pressure in proportion to an electric signal
- Bright and easy to read LED display
- Compatible w/various input specifications, including serial communications
- Built in communication board - no converter needed
- Compact/lightweight
- Controls air pressure in proportion to an electric signal.
