Dual Pump Warewashing Product Dispenser - UL

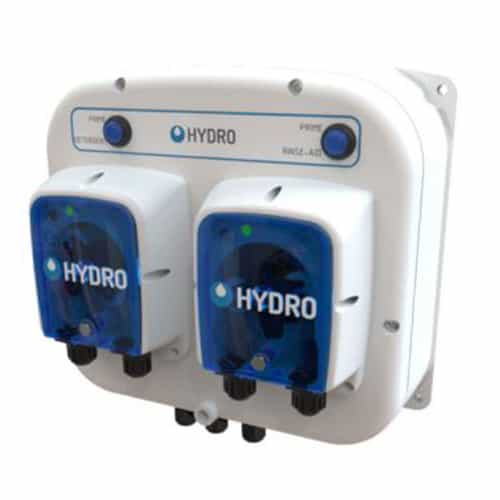

The Hydro Systems DM-500 is an economical product dispenser for commercial warewashing applications. Reliable unit for single tank, door-style machines or glass washers. It boasts a simple, clean design that's very easy to use and has a small footprint. Usable with the entire range of cleaning products from rinsing aids to full detergents. This is the UL-Listed version of the DM-500.

General Specifications:

• Electrical: 90 to 260 VAC at 50/60 Hz
• Chemical Temperature Rating: Intake chemicals should be room temperature
• Dimensions: 9.2" high x 9.3" wide x 5.4" depth
• Environmental: Pollution degree 2, 50° to 104° F temperature, 95% relative humidity
• Cabinet Material: Polypropylene
• UL 778:ed6-2016 (Standard for Motor-Operated Water Pumps)

Model Specifications:

Pump 1:

• Flow: 100 mL
• Pressure: 14.5 PSI (1 bar)
• Tube Material: Santoprene
• Adjustments: Time and Speed

Pump 2:

• Flow: 17 mL
• Pressure: 43.5 PSI (3 bar)
• Tube Material: Silicone
• Adjustments: Time and Speed

Features:

• Reliable unit for single tank, door-style machines or glass washers
• UL Listed
• Minimizes installation time with no complex programming or wiring
• Simple set up with just two wires to connect and two potentiometers to set per pump
• Attractive design
• Small footprint that minimizes required wall space
• Covers the full range of dish washing products including rinse aid and detergent
• Add on a CP-500 single pump to easily upgrade when a third product is needed
