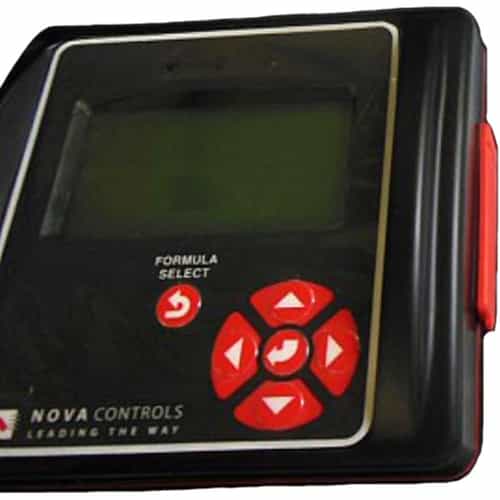

Electric Controller for Laundry Systems - Black

The Hydro Systems 01-08900-00 Black Total Eclipse Controller is a reliable electronic controller offering sophisticated control and data management for busy commercial laundry applications. Boasts an LCD screen that reports in plain-text and can be customized for language and customer needs. Connects to Hydro pumpstands and controls up to 8 products and 20 wash formulas with simple PC-based programming.

Details and Specifications:

• Black color option
• Compatible with existing Hydro pump stands
• Controls up to 8 products and 20 formulas
• LCD screen - 6 line, plain text menu and button prompts display on controller
• Multiple languages available
• Name formulas and pumps with customer and industry-specific names
• Vertical or horizontal mounting
• Dual level password protection
• Controller setup files can be moved from controller to controller via USB
• .97" x .74" x .97"
• Weight: .75 lbs.

Flexible, Safe and Easy to Use:

• Connect to machine interface and pump stand via low voltage cables
• Controls up to 8 products, depending on the selected pump stand
• Programs up to 20 different wash formulas
• "A", "B", "C" program quantities available for all pumps
• Backwards compatible with LM-100, LM-200, LL-6000, and LL-80000 pump stands
• 5 Modes of Operation: Standard, Relay, Event, Occurrence, Grouping
• Selelectable modes allow the system to work with trigger signals from fully programmable washers or with manually triggered signals (or cycle time extenders) from non-programmable, fixed-time washers
• Auto Formula Select simplifies formula selection in Standard Mode on fully programmable washers

Premium Reporting Capabilities:

• Formulas and controller setups can be programmed at the controller or with the Formula Editor computer software and uploaded via USB flash drive (8 GB or smaller) to each controller
• Summary reports on product usage, costs per formula, system settings and diagnosticsÑin addition to an activity logÑare easily downloaded to the USB flash drive and viewed or imported
• Data reports in HTML format can be read directly into Excel spreadsheets
• Separate passwords for Installer and Laundry Manager provides confidential report printing with no need to access programming menus
• Displays time or volume calibration
• Utilizes SAE or metric units of measurement
