General Pump EP1510S34L Left Solid Shaft Plunger Pump - 4.2GPM 3045PSI
Brand:
Mfr. Model #:
EP1510S34L
KR Part #:
GPEP1510S34L
Weight:
15.40 lbs
GTIN:
682491176015
Out of stock - Pre-Order Now!
This General Pump has a new generation seal system that allows for a longer life. Max flow of 4.2 GPM and a max pressure or 3045 PSI. This 7.1 HP pump operates at up to 3400 RPM. Features a left side solid shaft.

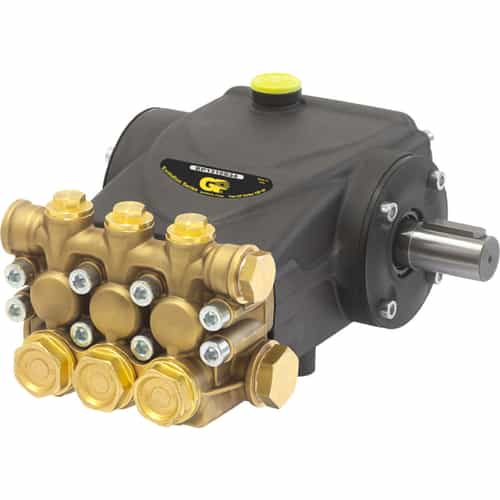

NOTE: Image for illustrative purposes. Although a right shaft pump is shown, this product is a left shaft pump.
NOTE: Image for illustrative purposes. Although a right shaft pump is shown, this product is a left shaft pump.
Technical Specifications
Bore: 15 millimeter
Stroke: 10 millimeter
Liquid Temperature: 165 degrees F
Max GPM: 4.2
Max PSI: 3045
RPM: 3400
Horsepower: 8.7
Crankcase Capacity: 15 ounces
Inlet Port: 1/2 inch
Outlet Port: 3/8 inch
Shaft Diameter: 24 millimeter
Product Description
Evolution Series Plunger Pump - Left Shaft
Evolution EP Series Triplex Plunger Pumps have advanced features, the next generation for high pressure industrial pup applications. Enhancements include a forged brass manifold, patent pending plunger guide bushing, new plunger fastening system, optimized outlet valves, solid ceramic plungers, duali lip oil seal and a dual diameter plunger guide!
Dimensions: 9.5" X 8.38 X 5.1"
Specifications:
- Max Volume: 4.2GPM
- Max Discharge Pressure: 3045PSI
- Max Pump Speed: 3400RPM
- Max Inlet Pressure: 125 PSI
- Max temp: 165 degrees F
- Solid 24 mm left shaft
- Horsepower: 7.1
- Oil capacity: 15oz.
- Plunger bore: 15mm
- Stroke: 8mm
- 100% Made in Italy
