2.1 GPH Harsh Chemical Pump

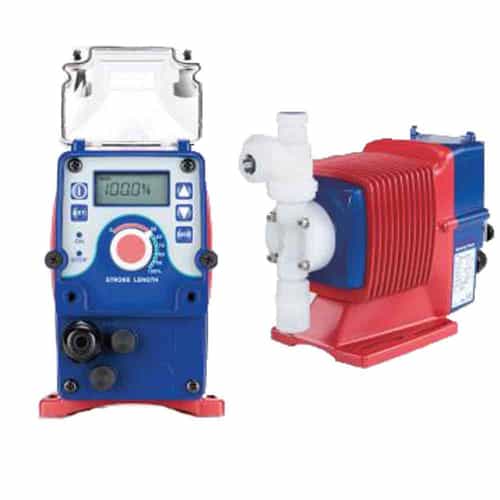

The Hydro Systems HYD-EDO-HAC E-Dos is an electric chemical feed pump capable of speeds up to 360 strokes per minute with 1 spm increment adjustments. The high speed of operation results in high resolution chemical feed and long service life. Quiet and compact, the E-Dos pumps prime in seconds and hold prime reliably. This version of the E-Dos boasts tubing that can be used with highly aggressive chemicals.

Specifications:

• Electrical: 100-240VAC +/-10%, single phase, 50/60 Hz
• Dimensions: 7.83" H x 10.43" L
• Wet End Materials: Pump Head - PVDF, Diaphragm - PTFE + EPDM, Valve Balls - Alumina Ceramic, Valve Seat - FKM, O-ring Seal - FKM, Gasket - PTFE
• Maximum Output Capacity: 2.1 GPH (130 mL/min, .07-.36 mL/shot)
• Maximum Rated Discharge Pressure: 105 PSI
• Maximum Useable Pressure: 116 PSI
• Stroke Rate: % (spm) 0.1 to 100 (1 to 360)
• Stroke Length Rate: % (mm) 20 to 100 (0.25 to 1.25)
• Upgraded tubing for highly aggressive chemicals

Features:

• High Speed Performance
• Multi-function Digital Controller
• Engineered Longevity
• Superior Check Valve Performance
• High Compression Ratio
• Engineered Longevity

Ideal Applications:

• Animal Health
• Greenhouse Sanitizing
• Metal Processing
• Odor Control
• Poultry Hygiene and Medication
