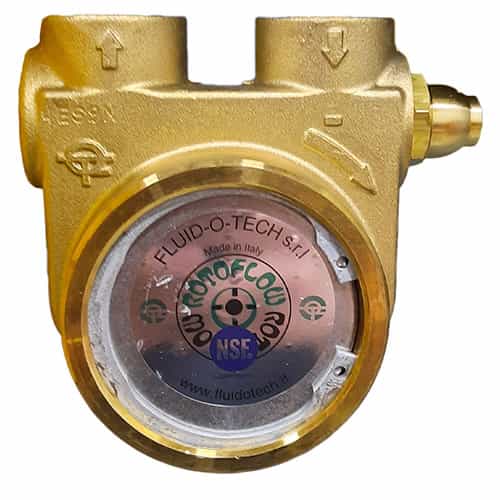

Fluid-O-Tech PB801A Brass High-Volume Rotary Vane Pump - 1/2 Inch NPT, 250 GPH 170 PSI, Clamp Style, Lead Free, 1725 RPM
Brand:
Mfr. Model #:
PB801A
KR Part #:
FTPB801A
Weight:
4.10 lbs
In Stock
The PB801A Fluid-O-Tech Rotary Pump has a lead-free brass body, stainless steel rotor, and carbon graphite vanes. Connections measure 1/2" NPT. Delivers a maximum flow rate of 250 GPH. This rotary pump is deal for reverse osmosis and water treatment at car washes and other industrial applications. It's lead-free and NSF safe, so it also works extremely well for beverage dispensing, espresso machines, and post mix drink dispensers.
Technical Specifications
Inlet Port: 1/2 inch
Outlet Port: 1/2 inch
RPM: 1725
Max PSI: 170
Max Temperature: 158 degrees F
Max GPM: 4.16
Product Description
Clamp Mount Fluid-O-Tech Rotary Pump
The Fluid-O-Tech PB801A is a rotary pump with a lead-free construction and engineered for high-volume applications. Clamp on mount is compatible with coupling direct motors. It produces a maximum flow rate of 250 GPH and pressure of 170 PSI. Components are housed in a brass shell. Inside is an AISI 303 rotor constructed with stainless steel for superior corrosion resistance and strength. Both the pumping chamber and the vanes are constructed with carbon graphite. Runs a maximum speed of 1725 RPM and a temperature of 158 degrees Fahrenheit.
Specifications:
- Material: Brass (California AB 1953 compliant)
- Vane Material: Carbon Graphite
- Pumping Chamber Material: Carbon Graphite
- AISI 303 Rotor Material: Stainless Steel
- Connection Size: 1/2" NPT
- Speed: 1725 RPM
- Max. Flow Rate: 250 GPH
- Max. Pressure: 170 PSI
- Max. Temperature: 158 Degrees F
- Mount: Clamp Style
- Weight: 4.10 lbs.
Applications:
- Post mix drink dispensers
- Cooling systems
- Water treatment
- Booster systems
