265 GPH - Self-Priming Rotary Vane Pump

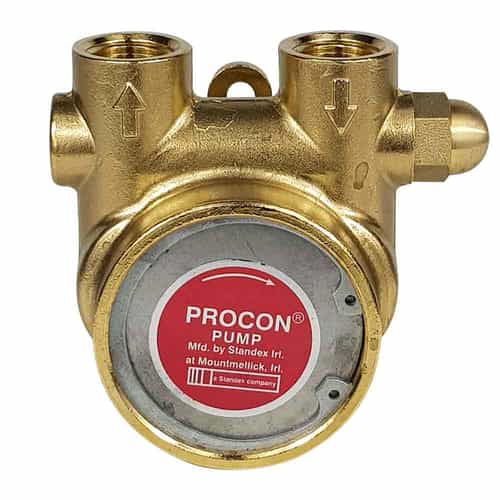

The Procon 104E265F11BA is a Series 4 rotary vane pump that is used to move fluid in the car wash, industrial, beverage, water treatment and medical applications. Engineered to operate with low vibration and pulsation. It features an integral strainer to remove harmful particles from fluid lines. It produces a maximum flow rate of 265 GPH and handles a maximum pressure of 150 PSI and speed of 2400 RPM. Both the inlet and outlet measure 1/2" with female NPT threading.

Specifications:

• Material: Brass
• Port Hole: NPT 1/2"
• Mounting Type: Bolt-On
• Drive Configuration: Single Flat
• Flowrate (GPH): 265GPH
• Flowrate (LPH): 800LPH
• Elastomer: EPDM/Nitrile
• Seal Type: Non Balances Ceramic/Carbon
• Rotation: Clockwise
• Internal Component Material: Carbon
• Valve Type: Solid- Ultem
• Valve Configuration: Standard-Non External adjust
• Operating Range:
• Maximum Mechanical Power Requirement: 1.01hp (753W)
• Maximum Operating Pressure: 150 PSI
• Relief Valve Set Pressure Range: 151 to 250psi (10 to 17.5 BAR)
• Max Static Pressure PSI: 100 PSI
• Min Operation Fluid Temperature: -4°F
• Max Operation Fluid Temperature: 160°F
• Max Fluid Viscosity: 100cP
• Max Sound Level: 60dB(a)
• Max Discharge Pressure: 250 PSI
• MinSpeed: 1000 RPM
• Max Speed: 2400 RPM
• Dry Suction Lift: 3.3ft
• Wet Suction Lift: 6.6ft
• Fluid Acidity: 6pH
• Maximum Total Dissolved Solids (TDS): 5000ppm

Features:

• Consistent flow rate across variable pressures
• Self-priming (water) and maintenance-free with low vibration and pulsation characteristics
• Internal Relief Valve External adjust configuration
• Integral Strainer for debris removal from pumping fluid
• Brass Housing Material
• NPT 1/2" Inlet and Outlet Connections
• Constructed with EPDM/Nitrile Elastomers
• Flowrate of 265GPH (800LPH)*
• Fluid Operating Temperature of between -4°F to 160°F (-20°C to 71°C)
• Maximum Mechanical Horsepower required 1.01hp (753W)¹
