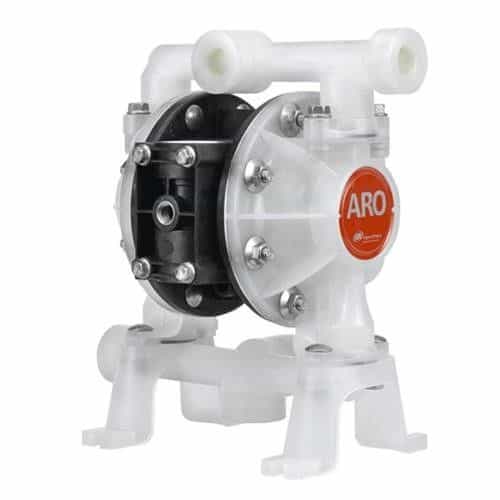

ARO 66605J-344 J-Style Double Diaphragm Pump - 13GPM, 100PSI
Brand:
Mfr. Model #:
66605J 344
KR Part #:
APJ344
Weight:
9.38 lbs
GTIN:
814338022609
Availability:
2
Low Inventory Get It Today
Manuals
This double diaphragm positive displacement pump uses two sets of flexible membranes to pump fluids and a series of check valves to ensure fluid can only travel in one direction through the chamber. Pump cycling begins when air pressure is applied.
Technical Specifications
Inlet Port: 1/2 inch
Max GPM: 13
Max PSI: 100
Max Temperature: 150 degrees F
Product Description
1/2" Port AODD Pump
Aro's compact double diaphragm pumps provide supreme performance in a small package. This positive displacement pump has 1/2" ports and a max flow rate of 13 GPM. Constructed with corrosion resistant materials, they're built to accommodate even the most difficult applications. A patented stall resistant air valve keeps the pump running continuously. Their compact size makes them ideal for OEM applications.
Specifications:
- Constructed with polypropylene center body
- Standard stainless steel fasteners
- Polypropylene casing materials
- Simul-Shift valve provides reliable shift signal
- 'Unbalanced' air valve ensures no-stall operation
- Center, End, and Dual Inlet / Outlet manifold configurations
- Bolted construction for leak-free fluid handling
- Modular design for easy servicing
- Handles solids up to 3/32"
- PTFE balls
- Polypropylene seats
- Diaphragm: PTFE / Santoprene
- Max Pressure:100 PSI
- Max Flow: 13 GPM
- Max Temp: 350 degrees F
