Opposed Mode Receiver

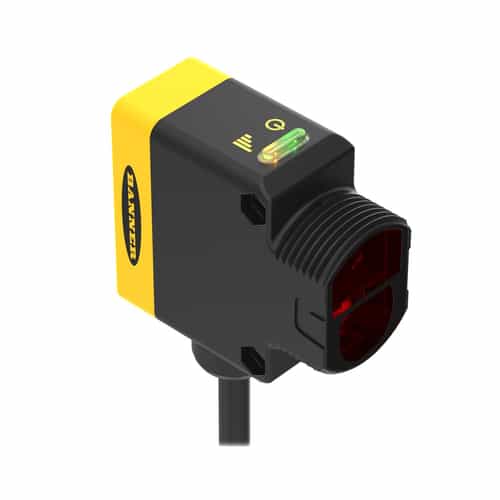

The Banner Sensors QS30VR3RQPMA is a long-range infrared LED opposed mode receiver for car wash equipment. Features a sensing distance of 60000 millimeters. Housing is made with thermoplastic, a rectangular design, and an M30 style mount. Engineered to handle 24-250 AC and 12-250 DC voltage connections.

Specifications:

• Sensing Beam: Infrared LED
• Power: AC/DC Universal
• Sensing Mode (General): Opposed
• Sensing Mode (Detailed): Receiver
• Housing Style: Rectangular w/M30 Mount
• Primary Housing Material: Thermoplastic
• Input/Output: E/M Relay
• Max Sensing Distance (mm): 60000
• Outputs: SPDT e/m Relay
• Power Supply/Supply Voltage: 12-250 V dc or 24-250 V ac
• Connection: 6 in (150 mm) PUR pigtail Micro-style QD
• Quick Disconnect Type: 1/2 in. (Micro)
• Min Op. Temp. (°C): -20
• Operation: Light/Dark Operate
• Max Op. Temp. (°C): 70
• Output response time (ms): 15
• Intrinsically Safe: No
• Remote Teach: No
• Water Detection: No
• Delay at Power-up (ms): 100
• Number of Pins: 5
• NEMA Rating: NEMA 6
• IP Rating: IP67
• Max Op. Relative Humidity [%]: 95% @ 50°C
• Lens Material: Acrylic
• Adjustments: N/A
• Barrel Diameter (mm): 30
• Indicator: LEDs
• Opposed Mode Emitter/Receiver: Receiver
• Timing (Hold/Delay): No
• Encapsulated: No
• Hazardous Area: No
• Audible: No
• Chemical Resistant: No
• Quick Disconnect: Yes
• DeviceNet: No
• IO Link: No
