General Pump PHTCK3623SL Series 70PHT Emperor Pump - 25 GPM, 1300 PSI, 1350 RPM, Left Shaft
Brand:
Mfr. Model #:
PHTCK3623SL
KR Part #:
GPPHTCK3623SL
Weight:
77.40 lbs
GTIN:
682491175889
Usually Ships in 2 Weeks
High volume, high tech pump for use in car wash and other high pressure cleaning applications. This pump series is specifically designed to handle lower temperatures, chemicals, and rigorous duty cycles. Up to 25.0 GPM flow at 1300 PSI, left shaft.

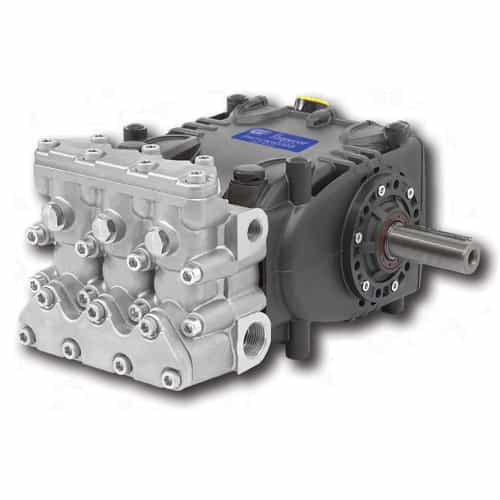

Note: Picture shows right shaft, but this is a left hand pump.
Note: Picture shows right shaft, but this is a left hand pump.
Freight Only
Technical Specifications
Max GPM: 25
Max PSI: 1300
RPM: 1350
Max Temperature: 140 degrees F
Inlet Port: 1 inch
Outlet Port: 1/2 inch
Bore: 36 millimeter
Stroke: 23 millimeter
Shaft Diameter: 30 millimeter
Product Description
General Pumps Emperor HTCK3623SL Pump
The perfect fit for car washes and other high pressure applications, the Emperor PHTCK3623SL Pump handles rigorous duty cycles and chemicals found in the hardest-working environments. Nickel-plated forged brass manifold, heavy-duty tapered roller bearings, and ceramic plungers all add high levels of durability. High-tech packings provide longer maintenance intervals. Use with cool fluids up to 140°F - higher temperatures require a red label hi-temp pump.
Dimensions: 15.3" x 13.4" x 7.7"
Features:
- Dynamic low-pressure seal retainer
- Superior low-pressure seal
- Innovative intermediate ring
- Superior high-pressure seal
- Ceramic plungers
- Patent-pending inlet/outlet valve cage
- Nickel-plated forged brass manifold
- Heavy-duty tapered roller bearings
- The Industrial Seals will provide improved durability in cold water applications (140°F and less), especially where water quality is poor.
Specifications:
- Maximum Volume: 25 GPM
- Maximum Pressure: 1300 PSI
- Maximum Pump Speed: 1350 RPM
- Maximum Inlet Pressure: 125 PSI
- Bore: 36 mm
- Stroke: 23 mm
- Crankcase Oil Capacity: 64.2 oz.
- Maximum Fluid Temperature: 140°F
- Inlet Port Thread: 1" NPT-F
- Discharge Port Thread: 1/2" NPT-F
- Shaft Diameter: 30 mm
- Shaft Position: Left
- Weight: 79.6 lbs.
