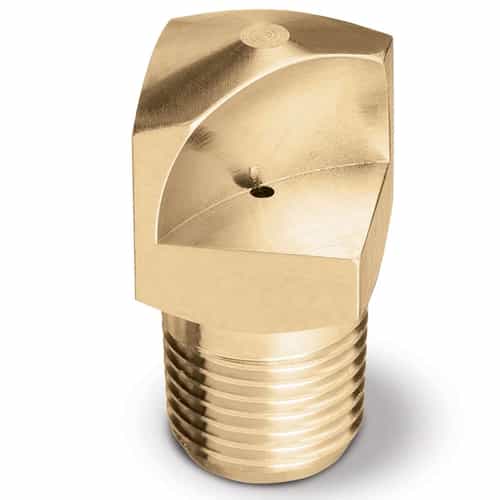

Spraying Systems 1/4P-1520 M Flatjet Brass Nozzle
Brand:
Mfr. Model #:
1/4P-1520
KR Part #:
SNFJ041520
Weight:
0.15 lbs
In Stock
A narrow angle deflected flat spray nozzle. Made of brass. The combination of medium- to large-flow rates and narrow spray angles produce a high impact spray.
Technical Specifications
Inlet Port: 1/4 inch
Max PSI: 500
Max GPM: 10.6
Product Description
FlatJet Spray Tip 1520
The Spraying Systems 1/4P-1520 FlatJet spray nozzle is designed to deliver a high-impact flat spray. Because the spray hits a deflector, water is evenly distributed from the center, retaining high impact at a narrow angle. Plus, its large flow passage helps avoid any obstructions!
Use this flat spray nozzle in presoaks, rinse arches, or any other application where adjacent spray patterns do not overlap.
Specifications:
- Inlet: 1/4" MNPT
- Spray Angle: 15°
- Spray Pattern Type: Flat Fan
- Capacity 20
- Nozzle Type: P
- Capacity Size: 10
- Material: Brass
- Length: 2 1/8"
- Orifice: .105"
- Deflection Angle: 19°
- Minimum Pressure: 20 PSI
- Maximum Pressure: 150 PSI
- Max flow: 3.9 gpm
