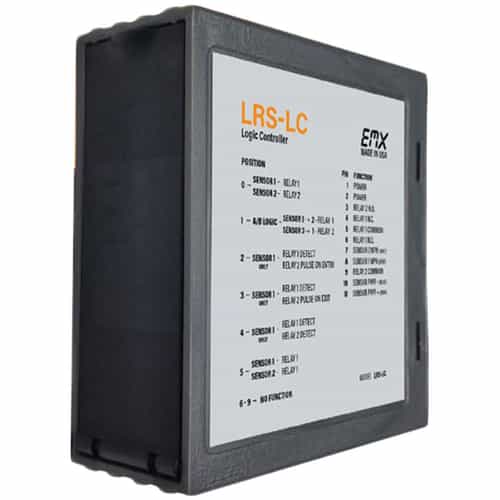

EMX LRS-LC Logic Controller for Loop Replacement System (LRS)
Brand:
Mfr. Model #:
LRS-LC
KR Part #:
LRS-LC
Weight:
0.00 lbs
Out of stock - Pre-Order Now!
Logic controller that increases the functionality of a Loop Replacement System (LRS). Adds A/B directional logic and allows for the connection of two sensors to increase the sensitivity range to 20'. Usable with both LRS-DB and LRS-FP sensors.
Technical Specifications
Voltage DC: 12-30
Voltage AC: 24
Amps: One sensor connected: 22/35mA, Two sensors connected: 33/60mA
Product Description
Expanded Functionality Controller for LRS
The EMX LRS-LC Logic Controller is used with LRS-DB and LRS-FP sensors to expand the capabilities of your LRS vehicle detection system. This interface allows two sensors to be connected to increase the sensing range from 5' to 20' and features A/B directional logic.LRS-LC Logic Controller Specifications:
- Power indicator: Green LED
- Detect indicator: 2 Red LEDs
- Configuration selector: 10 position rotary switch
- Outputs:Relay 1: SPDT (form C), Relay 2: SPST (form A)
- Output ratings: 1A @ 24 VDC/120 VAC
- Operating environment: -40o C…82o C (-40o F…180o F) 0…95% relative humidity
- Housing material: ABS
- Enclosure: IP30
- Power: 12-30 VDC and 24 VAC
- Operating current (standby/detect): One sensor connected: 22/35mA, Two sensors connected: 33/60mA
- Supply protection circuitry: Reverse polarity and fuse protected
- Dimensions: 2.9" x 1.2" x 3.1"
- Connector: 11 pin male connector (JEDEC B11-88)
- Two relay operation
- A/B directional logic
- Pulse on entry
- Pulse on exit
- Double relay
- Relay 1 only
