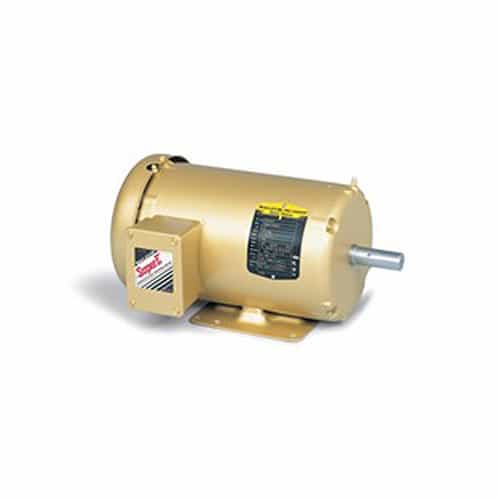

Baldor EM3558T Three Phase General Purpose Motor - 2HP, 1760 RPM, 145T, TEFC, 208-230/460V
Brand:
Mfr. Model #:
EM3558T
KR Part #:
MBEM3558T
Weight:
45.00 lbs
GTIN:
781568138908
Out of stock - Pre-Order Now!
Baldor Reliance industrial motor with 2 hp. The MBEM3558T three phase motor is ideal for wash equipment. It handles a maximum speed of 1760 RPM, features a TEFC enclosure, and uses a .875" shaft diameter.
Technical Specifications
Horsepower: 2
Phase: Three
Voltage AC: 208-230/460
RPM: 1760
Product Description
Baldor Reliance Industrial Motor 2 HP
The Baldor Reliance industrial motor EM3558T is a three phase motor engineered for general purpose applications. It is constructed with a 145T frame made with steel for durability and strength. Additionally, it features a fan cooled enclosure which cools the motor while keeping out unwanted debris. Compatible with 208-230/460V electrical connections. The shaft diameter measures 0.875" while the overall length measures 13.31".
The maximum RPM rate is 1750. This particular Baldor Reliance industrial motor touts 2 hp. Efficiency at 100" load is 86.5%. To learn more about any aspect of this popular Baldor electric motor, consider reading the PDF files on this page!
Baldor Reliance Industrial Motor Specifications:
- Max RPM: 1750
- Max Horsepower: 2
- Enclosure: TEFC
- Frame: 145T
- Frame Material: Steel
- Frequency: 60.00 Hz
- Motor Letter Type: Three Phase
- Output @ Frequency: 2.000 HP @ 60 HZ
- Phase: 3
- Synchronous Speed @ Frequency: 1800 RPM @ 60 HZ
- Voltage AC: 230/460
- Agency Approvals:
- CSA
- CSA
- EEV
- UR
- Ambient Temperature: 40 °C
- Efficiency @ 100% Load: 86.5 %
- Insulation Class: F
- KVA Code: L
- Number of Poles: 4
- Overall Length: 13.31"
- Power Factor: 75
- Service Factor: 1.15
- Shaft Diameter: 0.875"
