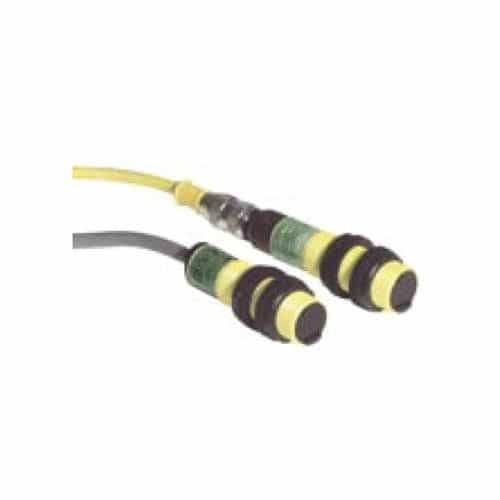

S18 Series EZ-Beam Sensor - DC

Banner's S18SP6D Diffuse is made with a thermoplastic housing. Features a 100mm sensing range. Engineered to meet NEMA 6P, IP67, IP69 ratings making this sensor an excellent choice for wash-down environments. Input for power. Compatible with 10 to 30 V DC. EZ-Beam technology provides reliable sensing without the need for adjustment. Features complementary PNP output and a 6.5ft cable.

Specifications:

• Sensing Beam: Infrared LED
• Power: DC
• Sensing Mode (General): Proximity
• Sensing Mode (Detailed): Diffuse
• Housing Style: Barrel
• Primary Housing Material: Thermoplastic
• Max Sensing Distance (mm): 100
• Output: Discrete PNP
• Power Supply/Supply Voltage: 10-30 V dc
• Min Op. Temp. (°C):  -40
• Operation: Light/Dark
• Max Op. Temp. (°C): 70
• Output response time (ms): 3
• Delay at Power-up (ms): 100
• Repeatability (µs): 750
• Number of Pins: 4
• IP Rating: IP67, IP69
• NEMA Rating: NEMA 6P
• Max Op. Relative Humidity [%]: 90% @ 50°C
• Lens Material: Acrylic
• Adjustments: N/A
• Barrel Diameter (mm): 18
• Indicator: LEDs
• Opposed Mode Receiver
• Washdown Rated: Yes
• Timing (Hold/Delay): No
• Ecolab Certified: Yes
• Encapsulated: Yes
• Hazardous Area: No
• Audible: No
• Chemical Resistant: No
• Device Net: No
• IO Link: No

• Exit Verification (In-Bay Automatic/Rollover): Verifies that vehicle has exited car wash. Signals dryers to turn off. Prompts entry doors to open and admit next vehicle.
• Teller/Coin Box and Menu Selection (In-Bay Automatic/Rollover): "Wakes up" teller. Doors open when correct code is entered, and previous vehicle has exited bay. Verifies that vehicle has departed coin box area.
• Undercarriage Wash Trigger (In-Bay Automatic/Rollover and Conveyorized Tunnel): Detects presence of a vehicle while it is in the undercarriage wash zone. Signals the pumps to start/stop undercarriage wash.
• Anti-Collision (Conveyorized Tunnel): Verifies that prior vehicle has exited car wash. Allows conveyor to "eject" car from system to exit the wash.
