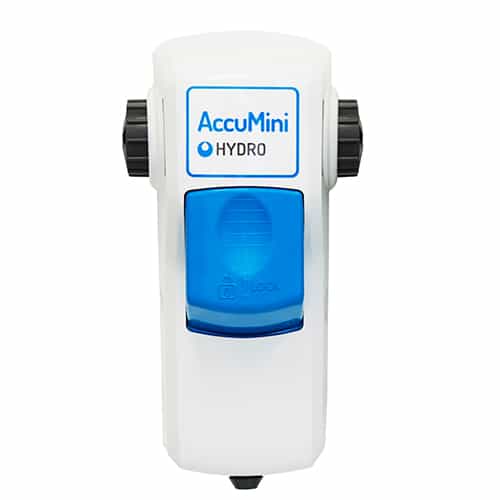

AccuMini Low Flow Dispenser with AirGap Eductor

The Hydro Systems HYD-AMI-LAB is the low flow version of the AccuMini that's ideal for bottle filling applications. This model is equipped with an airgap eductor as its backflow protection device.

AccuMinis have one of the smallest footprints of any chemical dispensers on the market. They offer similar reliability to the AccuMax line, only as an easier-to-fit solution. AccuMinis boast Hydro Systems' patented AccuPro Pressure Regulation Technology that offers 95% accurate dilution control, virtually eliminating variance and allowing accurate chemical dosage.

The small dimensions of AccuMinis make them great for equipment rooms, corners, closets, and other tight spaces. One-touch, single-button control allows you to fill bottles without having to continually keep your hands on the button. Simple three-part design, the ability to daisy chain without additional accessories, and the ability to service without taking them off the wall makes AccuMinis a great dosing option for busy operators.

AccuMini HYD-AMI-LAB Specifications:

• Low Flow - 1 GPM flow rate
• Swivel airgap eductor - allows flexible orientation for chemical inlet tube connectivity and uses a one-inch gap of air between the water source and the chemical inlet to provide backflow protection (ASSE 1055B Approved)
• Standard blue button
• Garden hose water connectivity
• Dimensions: 4.3" width x 8" height

AccuMini Features:

• Modular, reliable design is among the smallest footprint and narrowest dispensers available
• No additional accessories needed to daisy chain
• Single-touch 1-button operation - intuitive and ergonomic button design for quick fill and multitasking needs
• AccuPro: Patented pressure regulating technology, eliminates dilution variance with 95% accuracy, prevents water-to-chemical ratio to "lean out"
• 46% less material and 44% smaller footprint than AccuMax
• QR code manual directly on the device
• Simplified installation and accounting
• Three main components: cabinet, button and water valve manifold
• Fewer parts to stock and inventory, fewer parts to maintain
• Keyhole and slotted screw holes allow easier installation and screw placement
• Tool-free maintenance for disassembly and reassembly
• Easy water inlet swap with O-ring seal dependability
• Compatible with RiteConnect closed loop system
