12000 Lumen Bronze LED Light with Square Poles

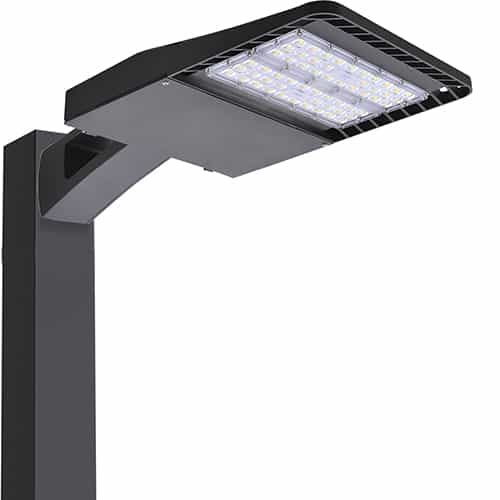

The LSI Industries 723697 Bronze LED Square Pole Fixture is a small, high-quality outdoor light for car washes, stores, garages, and other commercial properties. This sleek, small-sized LED fixture has a rugged die-cast aluminum housing with a bronze finish that not only looks great, but is also built to withstand outdoor use. It is designed with an acrylic lens and a square pole mounting arm. Compact size for small areas or for being inobtrusive.

Specifications:

• 85 Watt
• 12,000 Lumens
• Universal voltage - 120-277 Volt
• Acrylic lens
• 5,000K CCT
• Square pole mounted
• 80 CRI minimum color rendering
• 0-10 dimming driver (0-10%)
• Operating temperature range from -40° Fahrenheit to 104° Fahrenheit
• Manufacturer long part #SMA LED 12L ARC FT UNV DIM 50 BRZ PM
• See data sheet under "Manuals" for advanced specifications and installation information

Construction Features:

• Rugged die-cast aluminum housing for maximum durability and reliability
• IP65 rated luminaire protects integral components from harsh environments

Optical System Features:

• Premium engineered IP65 rated acrylic optic assemblies deliver Type 3, 4 (FT) or 5 distributions
• Zero uplight
• Minimum CRI of 80

Electrical Features:

• High-performance driver features short-circuit and over temperature protection with integral surge protection (6kV)
• L70 Calculated Life: >50K Hours
• Total harmonic distortion: <20%
• Power factor: >.90
• Input power stays constant over life
• Optional 10kV surge protection device meets a minimum Category C Low operation (per ANSI/IEEE C62.41.2)
• High-efficacy LEDs mounted to metal-core circuit board to maximize heat dissipation

Warranty:

• LSI luminaires carry a 5-year limited warranty

Certifications & Listings:

• Title 24 Compliant
• DLC Premium Listed
• IP65
