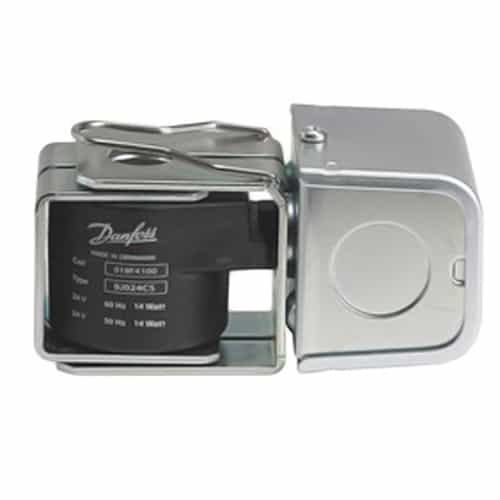

24 VAC - Clip-On Style Solenoid Coil

The Danfoss 018F4100 is a replacement coil for solenoid valves. It is used to swap one out that is worn or damaged. It features a clip-on mounting system to make installation easy. The electrical connections of this coil are compatible with 24 VAC currents. This coil is a genuine OEM Danfoss replacement part.

Specifications:

• Actuator size: 13.5 mm
• Ambient temperature range [°C] [max]: 50 °C
• Ambient temperature range [°C] [min]: -40 °C
• Ambient temperature range [°F] [max]: 120 °F
• Ambient temperature range [°F] [min]: -40 °F
• Approval: C UL US LISTED LLC CDC TYSK
• Cable length [in]: 8 in]
• Cable length [m]: 0.2 m
• Coil connection: Junction Box
• Coil design standard: UL 429
• Coil fastening: Clip-on
• Coil winding insulation class: Class H to IEC 85
• Color: Black
• Compliance: UL 429
• Electrical conn. comments: Flying leads
• Electrical connection: Junction Box
• Electrical connection standard: UL50E CLASS 2
• Enclosure rating IP: IP30
• Enclosure rating Nema (~): 2
• Frame design: Ext. metal frame
• Frequency [Hz]: 50/60 Hz
• In scope of WEEE and contain batteries: No
• Parts Program name:
  • EV210B
  • EV215B
  • EV220B 15 - 50
  • EV220B 6 - 22
  • EV225B
  • EV245B
  • EV250B
• Pollution degree: 3
• Power consumption [W] 50Hz: 14 W
• Power consumption [W] 60Hz: 14 W
• Product accessories: Solenoid coil accessories
• Product group: Solenoid valves
• Product Name Description: Solenoid coil
• REACH Candidate List substances: No
• Rel. Humidity [% RH] [max]: 97 %
• Rel. Humidity [% RH] [min]: 0 %
• Rel. Humidity conditions: Non-condensation
• Serviceable: No
• Spare part number: 018F4100
• Supply voltage 50Hz Max [V]: 24 V
• Supply voltage 60Hz Max [V]: 24 V
• Supply voltage [V] AC: 24 V
• Type: BJ024CS
• UL approval file name: MH29671
