Fluid-O-Tech PO800F Brass Rotary Vane Pump with Flange Mount - 250 GPH
Brand:
Mfr. Model #:
PO800F
KR Part #:
FTPO800F
Weight:
4.30 lbs
Out of stock - Pre-Order Now!
IN STOCK ALTERNATIVE
Procon 104E240F11XX Series 4 Bolt-On Rotary Vane Pump - 240 GPH, 1/2 in. Ports
SKU: PP2507A
Click to View

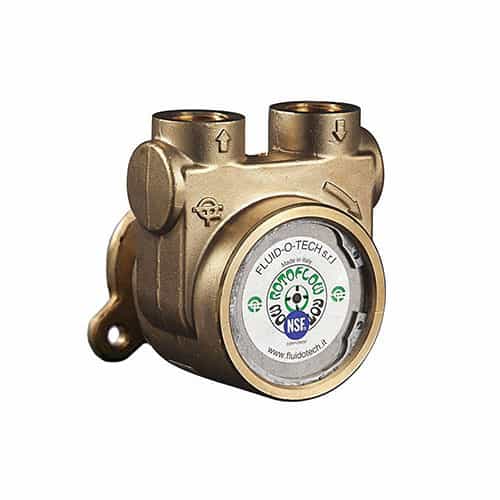

The Fluid-O-Tech PO800F Rotary Vane Pump has a brass body, stainless steel rotor, a carbon graphite pump chamber, and carbon graphite vanes. This pump includes a flange mount for motor coupling. 250 GPH, 1/2" inlet and outlet ports.
Technical Specifications
Max GPM: 4.2
Inlet Port: 1/2 inch
Outlet Port: 1/2 inch
RPM: 1725
Max Temperature: 158 degrees F
Product Description
Flange Mounted PO800F Brass Rotary Vane Pump
The Fluid-O-Tech PO800F is a brass rotary vane pump with a stainless steel AISI 303 rotor and a carbon graphite pumping chamber and vanes. This version of the PO800 pump comes with a flange mount for motors.
PO800F Specifications
- Flow Rate: 250 GPH (4.2 GPM)
- Ports: 1/2" FNPT
- Maximum Speed: 1725 RPM
- Nominal Speed: 1450 RPM
- Maximum Outlet Pressure: 230 PSI
- Maximum Static Pressure: 290 PSI
- Maximum Operating Pressure: 158° Fahrenheit
- Body Material: Lead-free brass
- Rotor Material: Stainless steel
- Pumping Chamber and Vane Material: Carbon graphite
- Mount: Flange
- No pressure bypass
- Certifications: NSF 169, WRAS
Applications
- Reverse osmosis systems
- Post-mix drink dispensers
- Cooling & booster systems
- Fuel injection systems
- Ultra-filtration systems
- Water dispensing systems
