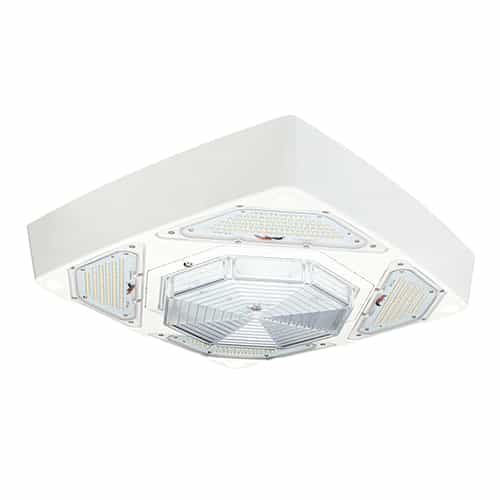

White LED Canopy Drop Lens Light from Jarvis

This Jarvis FLEXBEAM FLX Series LED Canopy Light has high-output modules and a drop lens. This durable and reliable outdoor lighting solution works well in demanding environments where high visibility is crucial. This bright LED fixture looks great from the road while and provides illumination to the area to create a safe, well-lit space that is comfortable for customers. Plus, it's energy efficient and cost-effective. It's the perfect addition to car wash and gas station canopies and overhangs!

This high-quality FLX Series light fixture boasts a white die-cast aluminum housing and impact-resistant polycarbonate lens that make it ideal for wet locations. It features selectable power and temperature levels that allow it to be used in a variety of applications, includes a 10-year manufacturer warranty, and has a projected lifespan of over 50,000 hours!

Item Specifications

• 22,800 maximum lumens (150W)
• Dimmable functionality is selectable to 16,500lumens (112W) and 12,000 lumens (75W)
• Wattage: 150 watts maximum
• Input Voltage: 120-277VAC
• Dimming/Control Power: Includes internal 12V aux and DTO wiring
• Housing Construction: Die-cast aluminum
• Housing Color: White
• Lens Construction: Polycarbonate
• Power Factor: >.95 at full load
• Total Harmonic Distortion: <13% full load
• Power supply includes internal 6kV surge protection
• Ambient Operating Temperature Range: -14° to 113° Fahrenheit (-25°C to 45°C)
• Full Jarvis brand SKU: FLX-10ML20-30/40/50K-YY-UV-DTO-WHT + FLX-A-OCT-DRPL

The Benefits of the Drop Lens Design

This LED light features a drop lens for the LEDs in the center section of the fixture instead of a recessed or flush mounted lens. It extends slightly below the housing, which allows the glow from the high-output LEDs to diffuse and be more visible. This is an advantage for businesses like car washes and gas stations because it adds to the entire visual display of the property. Potential customers passing by on the road can see the bright lighting - a subtle but effective marketing tactic that attracts their attention. Once customers are on the property, the large swath of light makes it easy for customers to see what they're doing and increases safety.

Key Features

• High-output modules have more LEDs than standard fixtures
• 10-year manufacturer warranty
• Compatible with JarvisLink network lighting control system (requires additional Z10R receptacle, please inquire before buying)
• Can be mounted to a canopy using a positive-pressure ring lock, self-drilling screws, or both
• Each LED array is independently sealed and features a pressure-releasing, hydrophobic valve
• Also available with standard modules or directional high-output modules

Regulatory and Voluntary Certifications

• UL certified to UL 1598 for both US and Canada
• State of California Title 24 Compliant when installed in accordance with local requirements
• Rated for Wet Locations
• Rated to IP65

Ideal Applications for FLX Series Canopy Drop Lens Lighting

• Car Washes
• Gas Stations
• Garages
• Parking Lots
• Walkways

Additional Product Information

Construction and Materials

• Housing is constructed from die-cast aluminum and finished with a corrosion resistant powder coat finish that is applied directly to housing material and will not crack or peel. Default color is white.
• Lens construction is impact-resistant UV-resistant polycarbonate
• Luminaire's construction contains zero mercury
• Fasteners are stainless-steel and will not rust or create rust streaks
• Patent pending design

Optical System

The FlexBeam FLX Series features impact-resistant polycarbonate optics which protect LEDs that are mounted onto metal-core circuit boards. Polycarbonate material is both impact and UV resistant. Metal-core circuit boards provide superior thermal management.

High output modules spread the existing fixture's LED power across a larger number of LEDs, increasing the efficiency and efficacy of the entire light fixture. High Output Modules are available with three different optical distributions - full cutoff, drop lens and directional. LED color temperature is selectable and can be set to 5000K, 4000K or 3000K during installation.

Installation Tips

FLX Series installs into a standard gas station canopy deck pan using a ring collar design which requires only one canopy penetration. Additional self-drilling screws can be used for added rigidity. Installs in a 12" or 16" deck pan. Surface mount boxes are available. Lumen output and CCT can be set during installation via 2 dipswitches located next to the LED driver.
