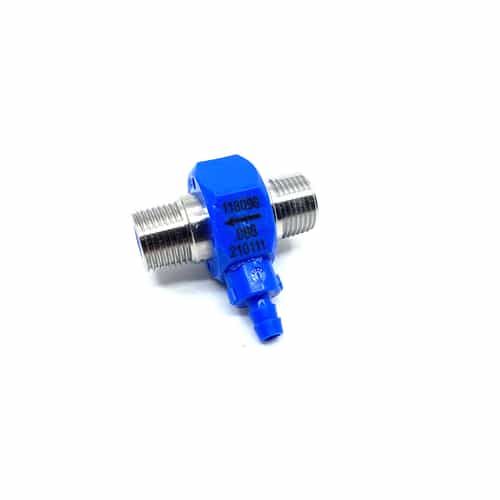

PDQ 63487 Stainless Steel and Kynar Chemical Injector - Blue, .086" Orifice, 2.25 GPM
Brand:
Mfr. Model #:
63487
KR Part #:
63487
Weight:
0.18 lbs
In Stock
The 63487 Chemical Injector from PDQ is a high-quality replacement part used on the pump of a variety of LaserWash car wash systems. It's made of Kynar and stainless steel, with 3/8" male NPT ports and a .086-inch orifice. Blue color coded for simple size identification. 2.25 GPM, 1000 max PSI, 175° F max temperature. Fits on: 4000, M5, 360, and ProTouch Icon.
Technical Specifications
Max GPM: 2.25
Orifice: .086 inch
Outlet Port: 3/8 inch
Inlet Port: 3/8 inch
Max PSI: 1000
Max Temperature: 175 degrees F
Type: LaserWash 4000
Type: LaserWash M5
Type: LaserWash 360
Type: LaserWash ProTouch Icon
Product Description
Replacement 63487 Chemical Injector for LaserWash Systems
The PDQ 63487 Injector is an OEM replacement part for the pump unit on several LaserWash automatic car wash systems. It boasts a corrosion and chemical resistant Kynar venturi insert and durable stainless steel connections. It has a .086" orifice and a flow rate of 2.25 GPM, with blue color coding for easy and fast size identification. Used with metering tips to properly dilute chemicals. Always use OEM parts when servicing your LaserWash system to get proper fit and optimal performance that meets the standards of the original part.
Item Specifications
- Flow rate: 2.25 GPM
- Orifice: 0.086"
- Pressure range: 100 - 1000 PSI
- 3/8" MNPT x 3/8" MNPT connection ports
- Temperature range: 33 - 175° Fahrenheit
- Blue color
- Single hose barb
- Maximum wrench torque: 30 ft-lbs
- Kynar venturi insert
- 316 stainless steel connection
- Hastelloy spring
- Teflon check ball
- XFC O-ring material
Compatible LaserWash Systems
- 4000
- M5
- 360
- ProTouch Icon
