PDQ 03150018 Brass 1/8" Injector with Metering Tips
Brand:
Mfr. Model #:
03150018
KR Part #:
03150018
Weight:
0.00 lbs
In Stock

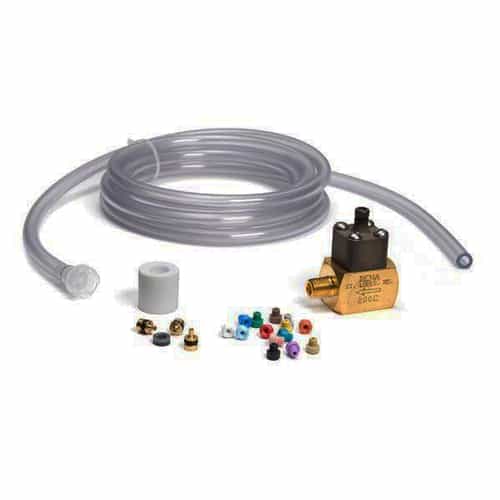

The 03150018 Chemical Injector from PDQ is an OEM part for a LaserWash ProTouch Tandem, used on the dryer unit of the system. This injector is made of brass and has 1/8" NPT inlet/outlet ports and a 1/4" barb for the chemical tube. It has a Ryton metering knob and check valve core for increased chemical resistance, along with 3 nozzle bushings to size the injector to water flow. Includes a metering tip kit and tube section.
Technical Specifications
Type: LaserWash ProTouch Tandem
Inlet Port: 1/8 inch
Outlet Port: 1/8 inch
Max PSI: 700
Product Description
Replacement 03150018 Injector for LaserWash ProTouch Tandem System Dryer
The PDQ 03150018 Injector is an OEM replacement part used on the dryer of a LaserWash ProTouch Tandem automatic car wash system. This brass chemical injector has 1/8" NPT connection ports and a 1/4" barb for the chemical tube. It features a Ryton metering knob and check valve core for high chemical resistance, and includes 3 water nozzle bushings to get the most accurate sizing of injector to water flow. A metering tip kit and tubing are also included.
Item Details
- Compatible with LaserWash ProTouch Tandem systems
- Brass construction
- 1/8" FNPT x 1/8" MNPT ports
- 1/4" barb
- Ryton metering knob (with screw) and check valve core
- Includes metering tip kit
- Chemical dilution adjusts with metering screw or metering tips
- Metering knob assembly can be oriented in any direction for ease of access in tight spots
- 3 water nozzle bushings (.45-.59)
- Tubing included
- Flow rate @ 120 PSI: .47 to .95 GPM
- Maximum 700 PSI (water at room temperature), 500 PSI ( water at 150° Fahrenheit)
- OEM part made by DEMA for PDQ
