Blue-White F-55750L Acrylic Body Flow Meter - 3/4 Inch, 1 to 10 GPM
Brand:
Mfr. Model #:
F-55750L
KR Part #:
BWF55750L
Weight:
0.50 lbs
Machined acrylic meter with a direct reading scale. Features 3/4" MNPT inlet and has a flow range from 1 to 10 GPM.

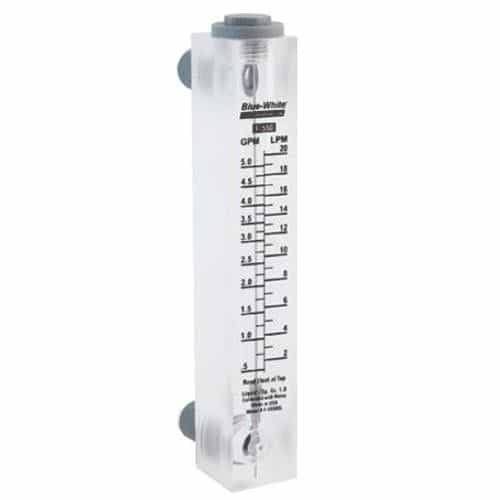

NOTE: The image shown is an accurate illustration of the product, but this product will have a scale that goes up to 10 GPM.
Technical Specifications
Max PSI: 250
Max Temperature: 200 degrees F
Inlet Port: 3/4 inch
Max GPM: 10
Product Description
Commercial Flow Meter
The Blue-White F-55750L Flow Meter is a one-piece acrylic instrument that measures the flow rate of water in a pressured system. This panel-mounted flow meter has 3/4" male NPT inlet and outlet connections and a flow range from 1 to 10 GPM. This instrument has only been tested with water and cannot be guaranteed to work with other fluids.
Specifications:
- 1-10 GPM
- 3/4" MNPT pipe size
- 250 PSI maximum pressure
- 200° maximum temperature
- Clear acrylic meter body
- 316 stainless steel floats
- Viton o-rings
- Polypropylene lock nut
- Permanent silkscreen scale
- +/- 5% full scale accuracy
- Weight: .50 lbs.
Features:
- Acrylic is durable and highly polished
- Annealed for added strength and chemical resistance
- Suitable for outdoor applications in direct sunlight
- Bulkhead nuts attach to inside panel
- White back reflector for easier reading
Applications:
- R.O. & D.I. water systems
- Pollution treatment equipment
- Purging and regulating equipment
- Water and wastewater treatment equipment
- Film and x-ray processing
- Chemigation equipment
