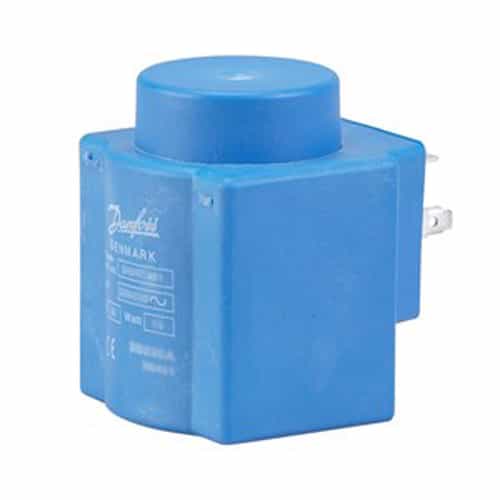

24 VAC Solenoid Valve Coil

Danfoss 018F7655 is a replacement coil for solenoid valves that accept a 24-volt DIN spade connector. It has a clip-on fastening system making it fast and easy to install. The electrical connection measures 6.3 mm x 0.8 mm and the actuator 13.5 mm. This is a genuine OEM part from Danfoss.

Specifications:

• Volume: 0.264 Liter
• EAN: 5702428041249
• Actuator size: 13.5 mm
• Ambient temperature range [°C] [max]: 50 °C
• Ambient temperature range [°C] [min]: -40 °C
• Ambient temperature range [°F] [max]: 122 °F
• Ambient temperature range [°F] [min]: -40 °F
• Approval:
  • cURus
  • CE
  • EAC
  • LLC CDC TYSK
  • UKCA
• Coil connection: DIN Spade
• Coil design standard: VDE 0580
• Coil fastening: Clip-on
• Coil winding insulation class: Class H to IEC 85
• Color: Blue
• Compliance:
  • EN 60730-1
  • UL 429
• Electrical connection: DIN Spade
• Electrical connection size: 6.3 mm x 0.8 mm
• Electrical connection standard: EN175301-803
• Electrical connector: 3 x spades
• Enclosure rating IP: IP00
• Frequency [Hz]: 50/60 Hz
• In scope of WEEE and contain batteries: No
• Parts Program name:
  • EV210B
  • EV212B
  • EV220B 15 - 50
  • EV220B 6 - 22
  • EV220B 65 - 100
  • EV222B
  • EV250B
  • EV251B
• Power consumption 50Hz [VA]: 26 VA
• Power consumption 60Hz [VA]: 21 VA
• Power consumption [W] 50Hz: 14 W
• Power consumption [W] 60Hz: 12 W
• Product accessories: Solenoid coil accessories
• Product group: Solenoid valves
• Product Name Description: Solenoid coil
• REACH Candidate List substances: Lead (CAS no. 7439-92-1)
• Rel. Humidity [% RH] [max]: 97 %
• Rel. Humidity [% RH] [min]: 0 %
• Rel. Humidity conditions: Non-condensation
• SCIP dossier no.: 23785618-b379-4da7-a913-ecd40c8fae6d
• SCIP dossier product name: Solenoid coils
• Serviceable: No
• Spare part number: 018F7655
• Supply voltage 50Hz Max [V]: 24 V
• Supply voltage 60Hz Max [V]: 24 V
• Supply voltage [V] AC: 24 V
• Type: BY024CS
• Type designation: BY024CS
• UL approval file name: MH29671
