Danfoss 032U1242 No Coil EV220B Type 2-Way Normally Closed Brass Solenoid - ISO 228/1 G3/8
Brand:
Mfr. Model #:
032U1242
KR Part #:
DF032U1242
Weight:
0.54 lbs
In Stock

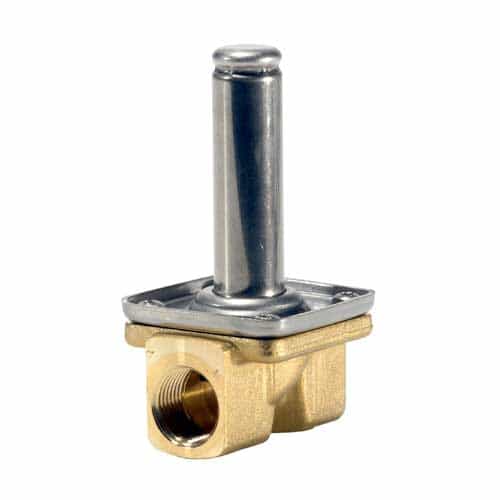

Brass body solenoid valve with two-way function and single-flow direction. ISO 228/1 G3/8".
Technical Specifications
Inlet Port: 3/8 inch
Max PSI: 725
Max Temperature: 212 degrees F
Product Description
NC Two-Way Solenoid Valve Without Coil - 725 PSI
The Danfoss 032U1242 solenoid valve allows you to operate a variety of water, oil, and compressed air services at your car wash. This brass two-way solenoid is a normally closed valve with single flow direction and ISO 228/1 G 3/8" connection.
Specifications:
- Function: Normally closed
- Number of Ways: 2/2-way solenoid
- Direction: Single flow
- Temperature Range: 32-212° Fahrenheit
- Connection: ISO 228/1 G 3/8"
- Maximum Test Pressure: 725 PSIG
- Maximum Differential Pressure: 435.113 PSI
- Minimum Differential Pressure: 1.45 PSI
- Type: EV220B
- Orifice Size: 1/4" (6 mm)
- Actuator: B
- Actuator Size: .53" (13.5 mm)
- Seal Material: FKM - Ideal for oil and air, but can be used with water up to 140° Fahrenheit.
- Operation: Servo-operated diaphragm
- Cv Value: .8 gallon/minute
- Kv Value: .7 m3/h
- Maximum Media Viscosity: 50 cSt
- Fluid Group: I
EAN:
- 57024230241314
