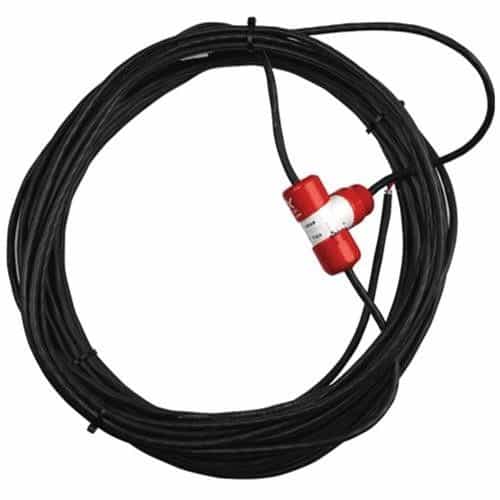

Ready-To-Use Induction Loop

This preformed PR-Loop works with all inductive EMX vehicle loop detectors. Engineered with incorporated lightning protection. Loop can be buried in saw cuts, tar for asphalt, and concrete installations. Wire diameter measures 0.26 inches and the loop dimension is 4 x 6 foot.

Specifications:

• Minimum Operating Temperature: -4° F
• Maximum Operating Temperature: 194° F
• Overall Diameter of Loop Wire: 0.26"
• Loop Dimensions: 4 x 6'
• Lead-In-Wire: 50 Foot Long
• Material: Twisted Wire in PVC Jacket
• Loop Wire Approvals: UL TC, PLTC, FPL or NPLF 300/600 Volt 40mil Nylon PVC Direct Burial

Features:

• Rugged and flexible TPE tubing
• Suitable for saw cut, tar and concrete installation
• Built-in electronic lightning protection
• Includes 50 ft. lead-in wire

Applications:

• Saw Cut
• Tar
• Concrete Installations
