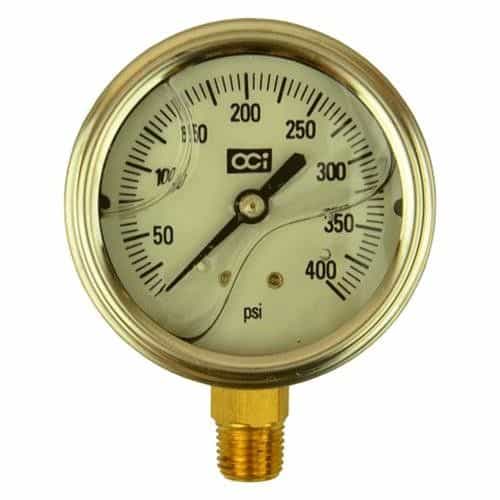

OCI Instruments 3034L 400L Liquid-Filled Pressure Gauge, 1/4 In. Bottom Mount, 0-400 PSI, 2 1/2 In. Face
Brand:
Mfr. Model #:
3034L 400L
KR Part #:
GAL400B
Weight:
0.50 lbs
In Stock
Liquid-filled industrial pressure gauge for use where vibration or pulsation would cause excessive wear to a dry gauge, or effect readings. 304 stainless steel case and ring. For neutral media such as air, water, oil, steam, and other liquids and gases compatible with brass and bronze.
Technical Specifications
Min PSI: 0
Max PSI: 400
Inlet Port: 1/4 inch
Product Description
Liquid Filled Pressure Gauge with 1/4 Bottom Mount
The OCI 3034L 400L is a liquid-filled industrial pressure gauge for use where vibration or pulsation would cause excessive wear to a dry gauge, or effect readings. 304 stainless steel case and ring for durability, injection-molded acrylic lens. 2.5" white ABS dial with black anodized pointer for fast, easy readings. For use with neutral media such as air, water, oil, steam, and other liquids and gases compatible with brass and bronze.
- 0-400 PSI
- Extruded brass socket
- 1/4" NPT bottom mount connection
- 2.5" Face
