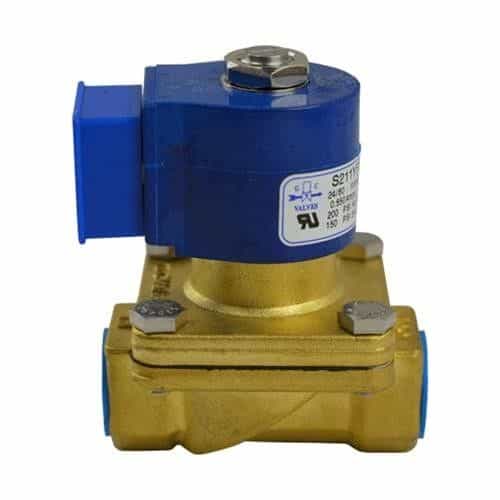

G.C. Valves S211YF24N5CG4 Normally Closed 3/8 Inch Solenoid Valve - 250 PSI, 24 VAC

Brand:
Mfr. Model #:
S211YF24N5CG4
KR Part #:
GC235
Weight:
1.93 lbs
Availability:
3
Low Stock Warning
MSRP
$135.92
Now Only!
$91.49
This is a normally closed solenoid valve. Compatible with 24 VAC power. Handles a maximum pressure of 250 PSI.



Technical Specifications

Orifice: 5/8 inch
Max Temperature: 180 degrees F
Inlet Port: 3/8 inch
Outlet Port: 3/8 inch
Voltage AC: 24
Max PSI: 250

Product Description

Brass Solenoid Valve

The S211YF24N5CG4 is a 2 way normally closed piloted solenoid valve. Valve is compatible with 24 Volt AC electrical connections. Equipped with 3/8" pipe connection ports. Sustains a maximum pressure of 250 PSI.

Specifications:

  • Electrical Connections: DIN
  • Valve Design: 2-Way Piloted Diaphragm
  • Voltage: 24 VAC/50-60
  • Orifice Diameter: 5/8"
  • Max. Operating Pressure Differential Light Oil: 150 (AC), 100 (DC)
  • Max. Operating Pressure Differential Air/Inert Gas: 200 (AC), 150 (DC)
  • Max. Operating Pressure Differential Water: 150 (AC), 100 (DC)
  • Watts: 10
  • Seal Material: Nitrile/Buna/NBR
  • Coefficient of Volume: 4.3
  • Body Material: Brass
  • Min. Operating Pressure Differential: 4 psi
  • Media: Air, Gas, Water, Light Oil
  • Coil Insulation Class: F NEMA Rating: 4/4X
  • Max. Fluid Temperature: 180 Degrees F
  • Pipe Size: 3/8"
