Valves & Swivels → Solenoid Valves → G.C. Solenoid Valves → GC Normally Open Solenoid Valves → G.C. Valves S201AF24N5DG4 Normally Closed Brass Solenoid Valve - 1/2 Inch, 24 VAC, 140 PSI

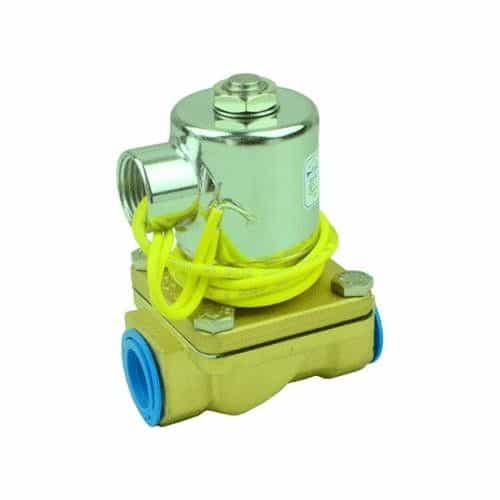

G.C. Valves S201AF24N5DG4 Normally Closed Brass Solenoid Valve - 1/2 Inch, 24 VAC, 140 PSI

Brand:
G.C. Valves
Mfr. Model #:
S201AF24N5DG4
KR Part #:
GC345
Weight:
2.00 lbs
Usually Ships in 3 Weeks
MSRP
$145.04
Now Only!
$96.14
This is a normally closed solenoid valve. Compatible with 24 VAC power. Handles a maximum pressure of 140 PSI.
More Info...



Technical Specifications

Max PSI: 140
Inlet Port: 1/2 inch
Outlet Port: 1/2 inch
Voltage AC: 24
Max Temperature: 180 degrees F
Orifice: 5/8 inch

Product Description

Normally Closed Valve

This solenoid is compatible with 24 Volt AC power. Features 1/2-Inch connections. Sustains a maximum pressure of 140 PSI. Orifice measures 5/8-Inch.

Specifications:

  • Pipe Size: 1/2"
  • Type: 2 Way
  • Mode: Normally Closed
  • Body Material: Brass
  • Coil Class: Class F
  • Coil Number: CS4AN24A34
  • Coil Voltage: 24/60 24/50
  • Holding Current (VA): 18
  • Housing Type: Metal Conduit
  • Inrush Current (VA): 46
  • Lead Length: 24
  • Max (Air): 140
  • Max (Lt Oil): 90
  • Max (Water): 140
  • Max Ambient Temperature: 125
  • Max Fluid Temperature: 180
  • Min Ambient Temperature: 32
  • Min Differential (PSI): 0
  • Mounting Direction: Any
  • Orifice Size: 5/8"
  • Seat Material: Buna N
  • Series: S20
  • Shading Ring: Silver
  • Watt Rating: 10

Product Reviews

Frequently Asked Questions

Question:is the valve NO or NC - David (03/10/2021)
Response:This is a normally closed valve.
