General Pump HTS2215S Emperor HTS Series 66 TSF Left Shaft Triplex Plunger Pump - 2300 PSI, 5 GPM
Brand:
Mfr. Model #:
HTS2215SL
KR Part #:
GPHTS2215SL
Weight:
33.40 lbs
GTIN:
682491026150
Availability:
2
Low Inventory Get It Today
This left shaft Emperor Pump in the HTS Series has heavy-duty tapered roller bearings and high-tech packings for long-lasting pump performance.

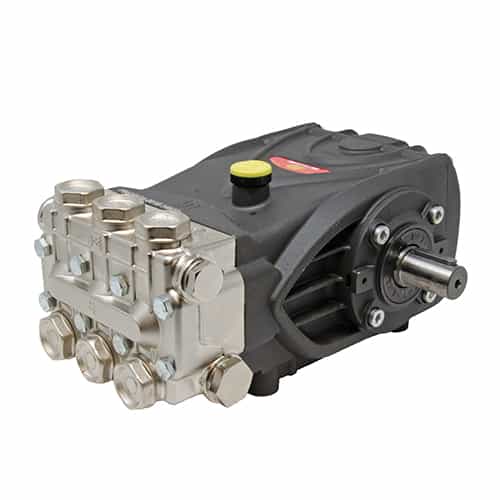

Note: Picture shows right shaft, but this is a left hand pump.
Technical Specifications
Bore: 22 millimeter
Shaft Diameter: 24 millimeter
Stroke: 15 millimeter
RPM: 1200
Max Temperature: 185 degrees F
Max PSI: 2300
Inlet Port: 1/2 inch
Crankcase Capacity: 40.6 ounce
Max GPM: 5
Product Description
HTS Series Emperor Pump - 5 GPM
The Triplex design makes this pump ideal for rigorous duty cycles, car washes and high-pressure cleaning applications. It can withstand high pressures up to 2300 PSI and pumps 5 gallons per minute. Both the inlet and outlet valve plugs are nickel-plated. The nickel-plated forged brass manifold is engineered to endure high temperatures and harsh chemicals. Note: Left-handed shaft.Dimensions - Nominal: 12.4" x 10.0" x 6.9"
Specifications:
- Maximum Volume: 5 GPM
- Maximum Pressure: 2300 PSI
- Maximum RPM: 1200 RPM
- Maximum Inlet Pressure: 125 PSI
- Minimum Inlet Pressure: 9 ft. water
- Maximum Fluid Temperature: 185 degrees F
- Bore: .866 in.
- Stroke: .591 in.
- Oil Capacity: 40.6 oz.
- Inlet Port Thread: 1/2"
- Discharge Port Thread: 3/8"
- Shaft Diameter: 24 mm
- Weight 32 lbs.
- Patent-pending "high tech" packings with dynamic low-pressure seal retainers, superior low-pressure seals, innovative intermediate rings, and superior high-pressure seal
- Ceramic plungers
- Patent-pending inlet/outlet valve cage
- Nickel-plated forged brass manifold
- Heavy-duty tapered roller bearings
