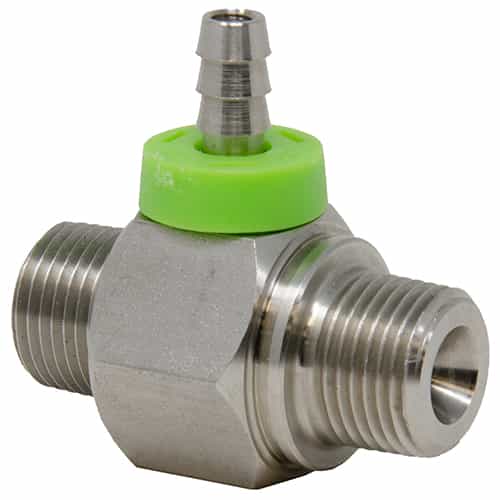

General Pump 100339LG Light Green Hose Barb Stainless Steel Chemical Injector - .091 in. Orifice
Brand:
Mfr. Model #:
100339LG
KR Part #:
GPP100339
Weight:
0.26 lbs
GTIN:
682491124191
Stainless steel chemical injector with a Kynar hose barb chemical port. Features a maximum 5500 PSI, 8 GPM, and 190 F operating temperature. A light green cap on the stainless steel hose barb denotes a .091" orifice.
Made In The USA
Technical Specifications
Orifice: .091 inch
Max Temperature: 190 degrees F
Max GPM: 8
Inlet Port: 3/8 inch
Outlet Port: 3/8 inch
Max PSI: 5500
Product Description
5500 PSI Chemical Injector - .091"
The General Pump 100339LG Chemical Injector is designed specifically for car wash applications. This stainless steel chemical injector has a flow rate of 5-8 GPM, a maximum pressure rating of 5500 PSI, and a maximum liquid temperature of 190 F. It also features a light green cap on the stainless steel hose barb which indicates its .091" orifice.
Specifications:
- 3/8" NPT-M inlet
- 3/8" NPT-M discharge
- 1/4" stainless steel hose barb chemical port
- .091" orifice indicated by light green cap
- 5-8 GPM flow rate range
- 5500 PSI max pressure
- 190° Fahrenheit max temperature
- Fixed design
- Made in the U.S.A.
- Weight: .4 lbs.
UPC:
- 682491124191
