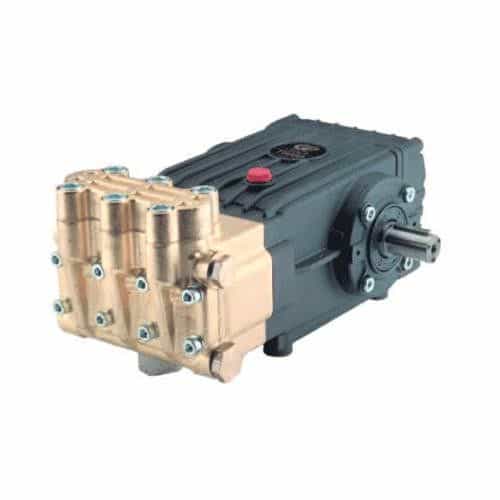

General Pump T5050 Triplex Plunger Pump, 5.0 GPM, 5000 PSI
Brand:
Mfr. Model #:
T5050
KR Part #:
GPT5050
Weight:
41.00 lbs
GTIN:
682491142164
Out of stock - Pre-Order Now!
T Series 47 S pump provides excellent service for car wash and pressure washing applications. Features a forged brass manifold and proven crankcase and bearing design. Up to 5.0 GPM at 5000 PSI.
Technical Specifications
Max PSI: 5000
Max Temperature: 165 degrees F
RPM: 1845
Bore: 16 millimeter
Stroke: 19 millimeter
Shaft Diameter: 24 millimeter
Inlet Port: 1/2 inch
Orifice: 3/8 inch
Crankcase Capacity: 40.6 ounce
Max GPM: 5
Product Description
The General Pump T5050 pump provides excellent service for car wash and pressure washing applications. Features a forged brass manifold and proven crankcase and bearing design with supreme durability and reliability. Produces consistent mid-range flow at high pressures.
Dimensions: 14.2" x 9.2" x 6.9"
Features
- Forged brass manifold that's twice as strong as cast
- Stainless steel piston guides
- Unique "in-line" valve system for easy access and durability
- Small bore combined with long stroke for maximum efficiency
- Thermally bonded ceramic coating rated to 10,000 PSI
- Proven crankcase and bearing design
Specifications
- Maximum Flow: 5 GPM
- Maximum Pressure: 5000 PSI
- RPM: 1845 RPM
- Max Temperature: 165° F
- Inlet Port: (2) 1/2-14 BSP-F
- Discharge Port: (2) 3/8-19 BSP-F
