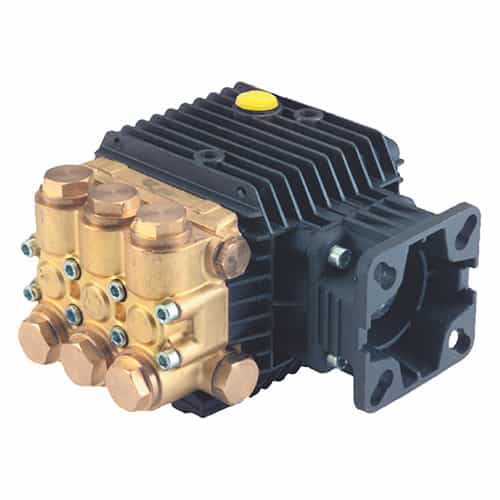

General Pump TP2530J34 TP Series 51 Triplex Plunger Pump, 2.88 GPM, 2500 PSI
Brand:
Mfr. Model #:
TP2530J34
KR Part #:
GPTP2530J34
Weight:
12.40 lbs
GTIN:
682491026419
Availability:
6
Low Inventory Get It Today
General cleaning 2500 PSI Triplex Plunger Pump featuring solid ceramic plungers. Die-cast, anodized aluminum, oil-bath crankcase and unitized stainless steel K01 inlet and discharge valves for durability. 2.88 GPM flow from a compact unit with standard SAE J609 gasoline engine mounting flange.
Technical Specifications
Crankcase Capacity: 11 oz.
Max GPM: 2.88
Max PSI: 2500
Max Temperature: 165 degrees F
RPM: 3400
Bore: 15 millimeter
Stroke: 7.2 millimeter
Shaft Diameter: 3/4 inch
Inlet Port: 3/8 inch
Outlet Port: 1/4 inch
Product Description
General Pump TP Series 51 Pump
General cleaning triplex plunger pump features solid ceramic plungers, die-cast, anodized aluminum, oil-bath crankcase and unitized stainless steel inlet and discharge valves for excellent reliability and durability. Compact design for ease of integration into system. Features 3/4" hollow shaft and SAE J609 gasoline engine mounting flange.
Dimensions: 7" x 7.2" x 5.5"Features:
- Forged brass manifold
- New, over-sized connecting rods for ultimate crankcase performance
- Die cast, anodized aluminum, oil-bath crankcase
- Solid ceramic plungers with continuously lubricated packings
- The original Interpump unitized, stainless steel, K01 inlet and outlet valves
- Ideal for all general cleaning applications
- Comes standard with either SAE J609 gasoline engine mounting flange
- Maximum Volume: 2.88 GPM
- Maximum Pressure: 2500 PSI
- Maximum Pump Speed: 3400 RPM
- Maximum Fluid Temperature: 165°F
- Inlet Port: 3/8"-19 BSP-F
- Outlet Port: 1/4"-19 BSP-F
