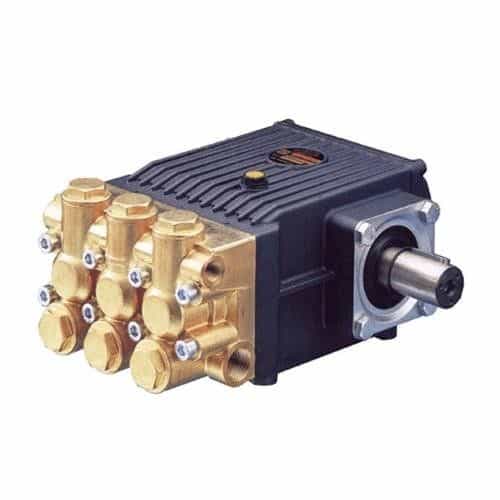

General Pump TS1041 Triplex Plunger Pump, 8.0 GPM, 1600 PSI, Right Shaft
Brand:
Mfr. Model #:
TS1041
KR Part #:
GPTS1041
Weight:
50.00 lbs
GTIN:
682491026464
Out of stock - Pre-Order Now!
The preferred pump frame in the pressure cleaning industry. Features a forged brass manifold, large-capacity aluminum oil bath crankcase, and solid ceramic plungers with continuously lubricated packings. Up to 8.0 GPM at 1600 PSI.
Technical Specifications
Max PSI: 1600
Max Temperature: 165 degrees F
RPM: 1450
Bore: 20 millimeter
Stroke: 22 millimeter
Shaft Diameter: 35 millimeter
Inlet Port: 3/4 inch
Crankcase Capacity: 50.7 ounce
Max GPM: 8
Product Description
General Pump T Series 69 Pump
The General Pump TS1041 features the preferred pump frame in the pressure cleaning industry. A forged brass manifold, large-capacity aluminum oil bath crankcase, and solid ceramic plungers with continuously lubricated packings all come together for supreme durability and reliability. Produces consistent mid-range flow at mid-range pressures.
Dimensions: 12.9" x 11.9" x 7.3"
Features
- Oversized connecting rods for maximum life
- Heavy duty tapered roller bearing
- Unitized stainless steel inlet and discharge valves
- Right side crankshaft
Specifications
- Maximum Flow: 8 GPM
- Maximum Pressure: 1600 PSI
- RPM: 1450 RPM
- Max Temperature: 165° F
- Inlet Port: 3/4-14 BSP-F
- Discharge Port: 3/8-19 BSP-F
