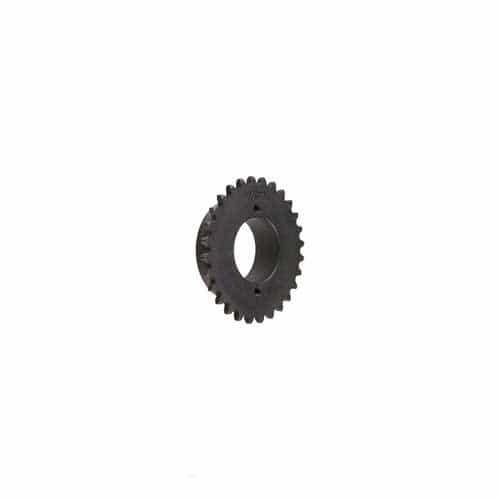

Bushed Steel Sprocket for Roller Chain

The Martin 40H18H roller chain sprocket is a Martin split taper (MST) sprocket that is used with Martin H bushings. The installed split table bushing offers a variety of bore sizes for roller chain conveyors at car washes.

Specifications:

• Material construction: Steel
• Chain number: 40
• Chain pitch: .500 inches
• Number of chain rows: 1
• Number of teeth: 18
• Outside diameter: 3.136 inches
• Pitch diameter: 2.879 inches
• Single strand tooth thickness: .284 inches
• Hardened teeth: yes
• Hub outside diameter: 2.5 inches
• Hub recessed for chain clearance: yes
• Bore Type: Bushed MST
• Bushing minimum bore size: .375 inches
• Bushing maximum bore size: 1.5 inches
• Weight: .75 pounds

Please see the product brochure under the "Manuals" tab for detailed sprocket information.
