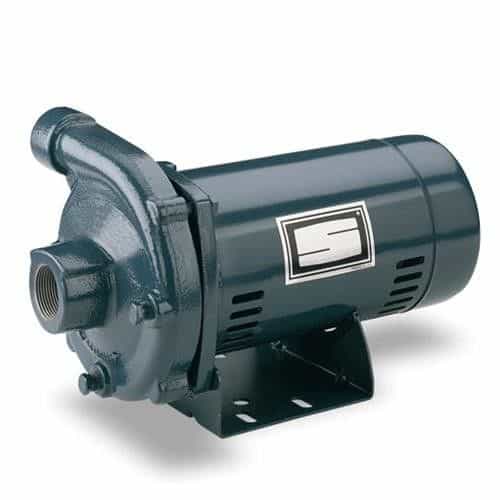

Sta-Rite JHG-52HL Single Phase Cast Iron High Head Centrifugal Pump - 115/230V, 2 HP, 85 GPM
Brand:
Mfr. Model #:
JHG-52HL
KR Part #:
JHG-52HL
Weight:
45.60 lbs
GTIN:
022315111462
Availability:
2
Single phase, two horsepower centrifugal pump housed in a cast iron body. High head style with a Noryl plastic impeller. 115/230 volt electrical requirements.
Technical Specifications
Horsepower: 2
Phase: Single
Voltage AC: 115/230
Outlet Port: 1 1/4 inch
Inlet Port: 1 1/2 inch
Max PSI: 130
Max GPM: 85
Max Temperature: 140 degrees F
Product Description
Cast Iron Centrifugal Pump with Noryl Impeller
The Sta-Rite JHG-52HL Pump is a centrifugal pump with a high head and a Noryl impeller. This durable centrifugal pump has 1-phase operation with 115/230 Volt electrical requirement. Ideal for a variety of heavy-duty water transfer applications including farming, manufacturing environments, car wash systems, domestic use, and industrial facilities.
Specifications:
- 2 horsepower
- 115/230 Volt
- 60 Hz
- One phase
- 1 1/4" NPT discharge port
- 1 1/2" NPT suction port
- 140° Fahrenheit maximum temperature
- 85 GPM maximum flow rate
- 130 PSI maximum total pressure
- Noryl material impeller
- Carbon/Ceramic/Buna-N seals
- 25' maximum suction lift
- Cast iron body
- 416 stainless steel motor shaft
Features:
- Drain port for easy winterizing
- Easy serviceability - Replaceable wear ring and a back pull-out design
- Tough cast iron body is ideal for demanding industrial environments
Applications:
- Car Wash
- Farm
- Industrial
- Manufacturing
- Heavy-Duty Home Use
- Sprinklers
- Irrigation
UPC:
- 022315111462
